SwapBlockAssignLayer is an AutoCAD AutoLISP utility that replaces selected drawing objects with instances of an existing named block, using a DCL block selector and remembered last-used block choice.
Command:
SwapBlockAssignLayer
Description:
🚀 SwapBlockAssignLayer is an AutoCAD AutoLISP block replacement tool for converting selected drawing entities into inserted block references.
The command prompts the user to select objects, displays a DCL popup list of available named blocks in the current drawing, remembers the last selected block through an environment variable, inserts the chosen block at each selected object’s insertion point or bounding-box center, and deletes the original selected object after replacement.
It is useful for CAD cleanup, converting placeholder geometry into standardized blocks, replacing temporary symbols with real block references, and improving drawing consistency in AutoCAD and Civil 3D production drawings.
Helper function: (if any)
LM-style helper logic is not used here; the routine relies on AutoLISP, Visual LISP COM calls, a temporary DCL dialog, block-table scanning with tblnext, object property checks, bounding-box fallback, and vla-InsertBlock.
Functionalities:
• 🧩 Command entry point: SwapBlockAssignLayer.
• 🔎 Prompts the user to select objects that should be replaced by block instances.
• 📋 Scans the drawing block table and lists user-defined named blocks.
• 🚫 Filters anonymous and system block names beginning with an asterisk.

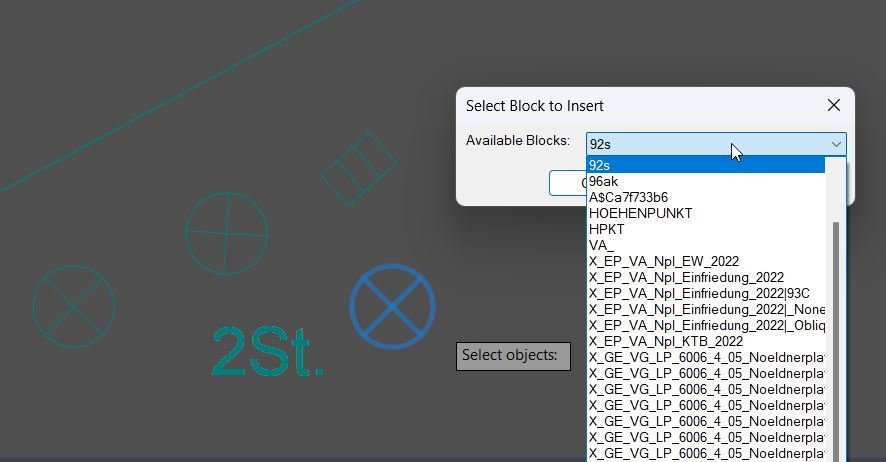

• 🪟 Builds a temporary DCL dialog named DuplicateToBlockInsert for block selection.
• 💾 Remembers the last selected block with the DuplicateToBlockInsert_LastBlock environment variable.
• 📍 Uses the object InsertionPoint when available.
• 📐 Falls back to the center of the object bounding box when no insertion point property exists.
• 🧭 Inserts the replacement block using the current UCS X direction for rotation.
• 🧹 Deletes the original selected entity after inserting the replacement block.
• ✅ Reports how many selected objects were replaced.
Result:
✅ Selected objects are replaced with instances of the chosen existing block, placed at each object’s insertion point or bounding-box center, while the original selected objects are removed.
