Zoom2Layer

Displays a filterable layer selection dialog and then zooms the view to the extents of all objects on the chosen layer.
Supports picking a layer directly from a selected object in the drawing and remembers the last filter used.

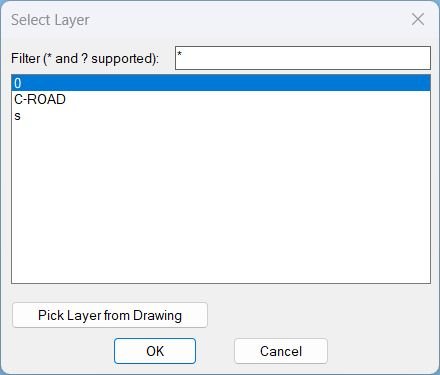

Builds a list of layers that are visible and unfrozen, then shows a temporary DCL popup where the user can filter and select a layer.
The filter field supports wildcards * and ? and is restored from the environment variable CHLAY-LAST-FILTER (defaults to *).
After a layer is selected, the command gathers all entities on that layer and computes a combined bounding rectangle, then performs a window zoom to that area.

LayerList-popup creates and manages the layer selection dialog and returns the chosen layer name when confirmed.
Drawing-Visible-Layers-lst iterates layer records via tblnext and keeps only layers that are not off and not frozen by checking flag bits in group code 70.
Update-List filters the full layer list using wcmatch against the current filter pattern and repopulates the list box.
Highlight-Layer attempts to locate a layer inside the filtered list and sets the list box selection to it.
Show-Dialog loads the temporary DCL file, wires dialog actions, returns the dialog exit code, and supports a special return value for the pick-from-drawing workflow.
c:Zoom2Layer selects all entities on the chosen layer, aggregates bounding boxes via ActiveX GetBoundingBox, and executes ZoomWindow.

• Layer filtering with wildcard patterns entered in the dialog filter box.
• Layer list scope includes only layers that are not off and not frozen (visible/unfrozen set).
• Pick Layer from Drawing button temporarily exits the dialog so the user can select an object and adopt that object’s layer as the new filter, then reopens the dialog.
• Persisted filter stored in CHLAY-LAST-FILTER and restored on next run.
• Zoom-to-layer extents by collecting all objects on the selected layer and computing min/max XY bounds from each entity’s bounding box.
• Robustness uses guarded ActiveX calls and skips entities that do not support GetBoundingBox.

If the user confirms a layer selection, the view zooms to the combined extents of entities on that layer.
If no objects exist on the selected layer, prints No objects found on layer for that layer.
If objects exist but none provide a valid bounding box, prints No valid geometry to zoom to for that layer.
If the user cancels or no layer is selected, prints No layer selected or cancelled and performs no zoom.

Based on / Source code: Open Website
