<src:RibbonToolTip x:Key="MultiOffsetBothSidesWithLayer">
<src:RibbonToolTip.ExpandedContent>
<StackPanel>
<TextBlock Background="AntiqueWhite" TextAlignment="Left">
<Bold>Function Syntax: MultiOffsetBothSidesWithLayerExtra / MOBSWLE / OLPredefinedProfiles / OLDebug</Bold>
<LineBreak/>
<Bold>Version: 1 Date: 07.11.2025</Bold>
<LineBreak/>
<Bold>Version: 2 Date: 23.06.2026 7:15:55PM</Bold>
<LineBreak/>
<Bold>Version: 3 Date: 03.07.2026 4:21:35PM</Bold>
<LineBreak/>
<Hyperlink>AI</Hyperlink>
<LineBreak/>
<Bold>Description</Bold><LineBreak/>
This AutoLISP program allows the user to <Span Foreground="DarkRed">offset multiple lines on both sides simultaneously</Span> with customizable distances, profiles, and target layers.
It includes interactive dialogs for configuration and layer selection, enhancing workflow efficiency when creating symmetrical line offsets in AutoCAD drawings.<LineBreak/>
<Bold>Main Function:</Bold><LineBreak/>
• Command name: <Span Foreground="Red">c:MultiOffsetBothSidesWithLayer</Span><LineBreak/>
• The user is prompted to select one or more <Span Foreground="DarkRed">LINE</Span> objects.<LineBreak/>

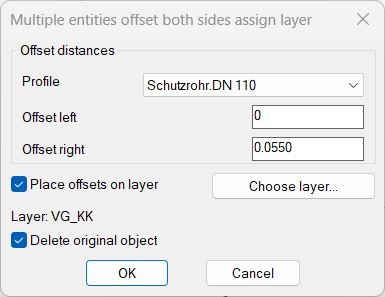

• The program displays a custom <Span Foreground="DarkRed">dialog box</Span> for offset settings.<LineBreak/>
• It then performs <Span Foreground="DarkRed">offsets on both sides</Span> of each selected line using specified distances and optionally places results on a chosen layer.<LineBreak/>
<Bold>Program Flow</Bold><LineBreak/>
• <Span Foreground="Red">Step 1:</Span> User selects lines to offset using <Span Foreground="DarkRed">(ssget ":L" '((0 . "*LINE")))</Span> — multiple passes allowed until Enter is pressed.<LineBreak/>
• <Span Foreground="Red">Step 2:</Span> The program opens a dialog for offset configuration — controlled by <Span Foreground="DarkRed">OL-ShowMainDialog</Span>.<LineBreak/>
• <Span Foreground="Red">Step 3:</Span> User can choose a predefined <Span Foreground="DarkRed">profile</Span> (e.g., "Schutzrohr.DN 110", "KK Gr. II i.F_400X275") to automatically set left and right offset distances.<LineBreak/>
• <Span Foreground="Red">Step 4:</Span> Option to <Span Foreground="DarkRed">delete the original line</Span> after offsetting.<LineBreak/>
• <Span Foreground="Red">Step 5:</Span> Option to <Span Foreground="DarkRed">assign new offsets to a specific layer</Span> via <Span Foreground="DarkRed">OL-ChooseLayer</Span> dialog, which filters and lists non-XREF layers.<LineBreak/>
• <Span Foreground="Red">Step 6:</Span> Executes offset operation using AutoCAD command <Span Foreground="DarkRed">_.offset</Span> in “Source” mode.<LineBreak/>
• <Span Foreground="Red">Step 7:</Span> For each selected line:<LineBreak/>
  – If a target layer is set, it changes the line’s <Span Foreground="DarkRed">DXF layer (group 8)</Span>.<LineBreak/>
  – Performs <Span Foreground="DarkRed">right</Span> and <Span Foreground="DarkRed">left</Span> offsets with the chosen distances.<LineBreak/>
  – Optionally deletes the original entity using <Span Foreground="DarkRed">(vla-erase)</Span>.<LineBreak/>
<Bold>Global Variables Initialized</Bold><LineBreak/>
• <Span Foreground="DarkRed">ol-profiles</Span> — predefined offset profiles with left/right distances.<LineBreak/>
• <Span Foreground="DarkRed">ol-offL</Span>, <Span Foreground="DarkRed">ol-offR</Span> — default offset distances (left/right).<LineBreak/>
• <Span Foreground="DarkRed">ol-delorig</Span> — whether to delete the original line (1 = yes).<LineBreak/>
• <Span Foreground="DarkRed">ol-use-layer</Span> — whether to place offset lines on a chosen layer.<LineBreak/>
• <Span Foreground="DarkRed">ol-layer</Span> — stores chosen layer name.<LineBreak/>
<Bold>Dialog System Features</Bold><LineBreak/>
• Offset distances editable manually.<LineBreak/>

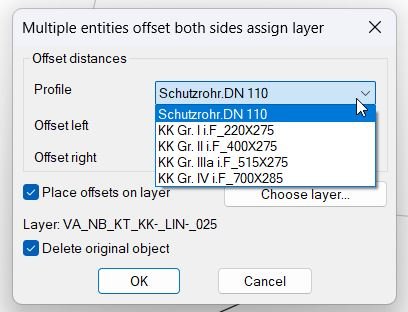

• Dynamic profile selection updates offsets automatically using <Span Foreground="DarkRed">OL-Profile-Change</Span>.<LineBreak/>
• Checkbox toggles for “Delete Original” and “Place on Layer.”<LineBreak/>

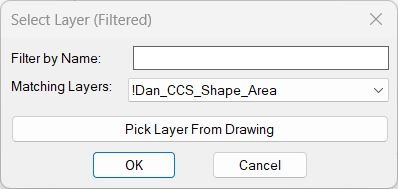

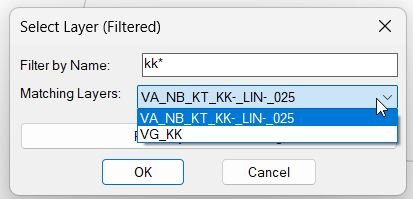

• Layer filter system allows partial name search and layer selection via <Span Foreground="DarkRed">DCL</Span> interface.<LineBreak/>

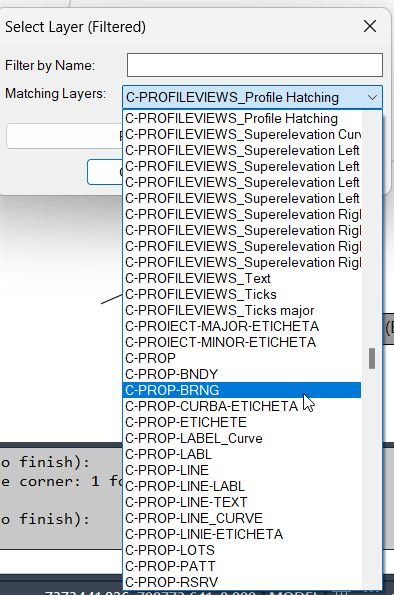

• Option to <Span Foreground="DarkRed">pick a layer from an existing object</Span> directly from the drawing.<LineBreak/>
<Bold>Key Functions</Bold><LineBreak/>
• <Span Foreground="DarkRed">OL-CollectLines</Span> — gathers all selected line entities.<LineBreak/>
• <Span Foreground="DarkRed">OL-GetAllLayers</Span> — retrieves non-XREF layer names.<LineBreak/>
• <Span Foreground="DarkRed">OL-ChooseLayer</Span> — opens dialog for filtering and choosing layers.<LineBreak/>
• <Span Foreground="DarkRed">OL-Profile-Change</Span> — updates offset distances based on selected profile.<LineBreak/>
• <Span Foreground="DarkRed">OL-ShowMainDialog</Span> — main interface for user input.<LineBreak/>
<Bold>Special Notes</Bold><LineBreak/>
• Uses AutoLISP and(vl-load-com) for full ActiveX and DCL dialog support.<LineBreak/>
• Offsets are performed through <Span Foreground="DarkRed">(vla-offset)</Span> ensuring proper layer inheritance.<LineBreak/>
• Original entity removal is handled through <Span Foreground="DarkRed">(vla-erase)</Span>.<LineBreak/>
• Temporary DCL files are created dynamically using <Span Foreground="DarkRed">(vl-filename-mktemp)</Span> and deleted after use.<LineBreak/>
<Bold>Result</Bold><LineBreak/>
The final outcome is a set of new offset lines created on both sides of the originals, with customizable spacing and layering — ideal for ducting, piping, or structural linework drafting workflows in AutoCAD.<LineBreak/>

</TextBlock>

<Grid>
<Image Source="Image_000.png" Stretch="Uniform"/>
</Grid>

<Grid>
<Image Source="Image_001.png" Stretch="Uniform"/>
</Grid>

<Grid>
<Image Source="Image_002.png" Stretch="Uniform"/>
</Grid>

<Grid>
<Image Source="Image_003.png" Stretch="Uniform"/>
</Grid>

<Grid>
<MediaElement
 Source="Animation_000.gif"
 Stretch="Uniform"
 Visibility="Visible"/>
 </Grid>

</StackPanel>
</src:RibbonToolTip.ExpandedContent>
</src:RibbonToolTip>
</ResourceDictionary>

// ===== FILE: ExtensionApplication.cs =====
using System;
using System.IO;
using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.Runtime;
using MultiOffsetBothSidesWithLayerExtra.Services;
using Application = Autodesk.AutoCAD.ApplicationServices.Application;

[assembly: ExtensionApplication(typeof(MultiOffsetBothSidesWithLayerExtra.ExtensionApplication))]

namespace MultiOffsetBothSidesWithLayerExtra
{
    /// <summary>
    /// Runs once when the DLL is loaded (NETLOAD or via a bundle/autoload
    /// entry). Prints the version banner requested — build number plus the
    /// DLL's actual build/copy timestamp, e.g.:
    ///   MultiOffsetBothSidesWithLayerExtra v1.0.001_03.07.2026_05.29.43 loaded.
    /// so you always know exactly which build is active in a session,
    /// the same role *ol-version* played in the LISP header/footer.
    /// </summary>
    public class ExtensionApplication : IExtensionApplication
    {
        public void Initialize()
        {
            string appData = Environment.GetFolderPath(Environment.SpecialFolder.ApplicationData);
            string logFolder = Path.Combine(appData, "MultiOffsetBothSidesWithLayerExtra", "logs");
            Logger.EnableFileLogging(logFolder);

            ProfileStore.Load();

            string banner = "MultiOffsetBothSidesWithLayerExtra v" + VersionInfo.GetBanner() + " loaded.";
            var ed = Application.DocumentManager.MdiActiveDocument?.Editor;
            ed?.WriteMessage("\n" + banner);
            ed?.WriteMessage("\nCommands: MultiOffsetBothSidesWithLayerExtra  MOBSWLE  OLPredefinedProfiles  OLDebug");

            Logger.Info("ExtensionApplication", banner);
        }

        public void Terminate()
        {
            try
            {
                ProfileStore.Save();
            }
            catch
            {
                // best-effort on unload
            }
        }
    }
}


// ===== FILE: Commands.cs =====
using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.Runtime;
using MultiOffsetBothSidesWithLayerExtra.Services;
using MultiOffsetBothSidesWithLayerExtra.UI;
using Application = Autodesk.AutoCAD.ApplicationServices.Application;
using Exception = System.Exception;

[assembly: CommandClass(typeof(MultiOffsetBothSidesWithLayerExtra.Commands))]

namespace MultiOffsetBothSidesWithLayerExtra
{
    public class Commands
    {
        private static MainForm _mainForm;

        /// <summary>Shows the modeless tool window; reuses the existing instance if already open.</summary>
        [CommandMethod("MultiOffsetBothSidesWithLayerExtra")]
        public void ShowMainForm()
        {
            ShowMainFormCore("MultiOffsetBothSidesWithLayerExtra");
        }

        /// <summary>Short command alias for the same tool.</summary>
        [CommandMethod("MOBSWLE")]
        public void ShowMainFormAlias()
        {
            ShowMainFormCore("MOBSWLE");
        }

        private static void ShowMainFormCore(string commandName)
        {
            try
            {
                if (_mainForm == null || _mainForm.IsDisposed)
                {
                    _mainForm = new MainForm();
                    Application.ShowModelessDialog(_mainForm);
                }
                else
                {
                    _mainForm.Activate();
                }
            }
            catch (Exception ex)
            {
                Logger.Error("Commands", "Failed to open main form from " + commandName + ": " + ex.Message);
                Application.DocumentManager.MdiActiveDocument?.Editor.WriteMessage(
                    "\n" + commandName + " failed to start: " + ex.Message);
            }
        }

        /// <summary>Equivalent of c:OLPredefinedProfiles, standalone (in case you want
        /// to manage profiles without opening the main tool window first).</summary>
        [CommandMethod("OLPredefinedProfiles")]
        public void ShowManageProfiles()
        {
            using (var f = new ManageProfilesForm())
            {
                f.ShowDialog();
            }
        }

        /// <summary>Prints the current in-memory log to the command line
        /// (equivalent of c:OLDebug's quick report).</summary>
        [CommandMethod("OLDebug")]
        public void ShowDebugLog()
        {
            var ed = Application.DocumentManager.MdiActiveDocument?.Editor;
            if (ed == null) return;

            ed.WriteMessage("\n--- MultiOffset log (" + Logger.Entries.Count + " entries) ---");
            foreach (var e in Logger.Entries)
                ed.WriteMessage("\n" + e);
            ed.WriteMessage("\n--- end log ---");
        }
    }
}


// ===== FILE: Services\UserPreferences.cs =====
using System;
using System.IO;
using System.Xml.Serialization;

namespace MultiOffsetBothSidesWithLayerExtra.Services
{
    [Serializable]
    public sealed class UserPreferences
    {
        public int WindowWidth { get; set; } = 1260;
        public int WindowHeight { get; set; } = 820;
        public int WindowLeft { get; set; } = int.MinValue;
        public int WindowTop { get; set; } = int.MinValue;
        public string SelectedGroup { get; set; }
        public string SelectedProfile { get; set; }
        public string TargetLayer { get; set; }
        public float PreviewZoom { get; set; } = 1.0f;
        public int RightHorizontalSplitDistance { get; set; } = 380;
        public int PreviewPickedSplitDistance { get; set; } = 640;

        private static string DefaultPath => Path.Combine(
            Environment.GetFolderPath(Environment.SpecialFolder.ApplicationData),
            "MultiOffsetBothSidesWithLayerExtra", "ui-preferences.xml");

        public static UserPreferences Load()
        {
            try
            {
                if (!File.Exists(DefaultPath)) return new UserPreferences();
                var serializer = new XmlSerializer(typeof(UserPreferences));
                using (var stream = File.OpenRead(DefaultPath))
                    return (UserPreferences)serializer.Deserialize(stream) ?? new UserPreferences();
            }
            catch (Exception ex)
            {
                Logger.Warn("UserPreferences", "Could not load UI preferences: " + ex.Message);
                return new UserPreferences();
            }
        }

        public void Save()
        {
            try
            {
                Directory.CreateDirectory(Path.GetDirectoryName(DefaultPath));
                var serializer = new XmlSerializer(typeof(UserPreferences));
                using (var stream = File.Create(DefaultPath))
                    serializer.Serialize(stream, this);
            }
            catch (Exception ex)
            {
                Logger.Warn("UserPreferences", "Could not save UI preferences: " + ex.Message);
            }
        }
    }
}


// ===== FILE: Services\AcadDocumentService.cs =====
using System;
using System.Windows.Forms;
using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.EditorInput;
using Application = Autodesk.AutoCAD.ApplicationServices.Application;

namespace MultiOffsetBothSidesWithLayerExtra.Services
{
    /// <summary>
    /// Small adapter around AutoCAD document/editor interactions. Keeping these
    /// calls out of the form makes modeless WinForms behaviour easier to audit.
    /// </summary>
    public static class AcadDocumentService
    {
        public static Document ActiveDocument => Application.DocumentManager.MdiActiveDocument;

        public static void WithActiveDocumentLock(Action<Document> action)
        {
            var doc = ActiveDocument;
            if (doc == null || action == null) return;

            using (doc.LockDocument())
                action(doc);
        }

        public static PromptSelectionResult GetSelectionWithHiddenOwner(Form owner, SelectionFilter filter)
        {
            var doc = ActiveDocument;
            if (doc == null)
                return null;

            bool wasVisible = owner != null && owner.Visible;
            try
            {
                if (wasVisible) owner.Hide();
                return doc.Editor.GetSelection(filter);
            }
            finally
            {
                if (wasVisible && owner != null && !owner.IsDisposed)
                {
                    owner.Show();
                    owner.Activate();
                }
            }
        }
    }
}


// ===== FILE: Services\InputValidator.cs =====
using System.Globalization;

namespace MultiOffsetBothSidesWithLayerExtra.Services
{
    public static class InputValidator
    {
        public static bool TryParsePositiveDistance(string text, string fieldName, out double value, out string error)
        {
            value = 0.0;
            error = null;

            if (string.IsNullOrWhiteSpace(text))
            {
                error = fieldName + " is required.";
                return false;
            }

            string normalized = text.Trim();
            bool parsed = double.TryParse(normalized, NumberStyles.Float, CultureInfo.InvariantCulture, out value) ||
                          double.TryParse(normalized, NumberStyles.Float, CultureInfo.CurrentCulture, out value) ||
                          double.TryParse(normalized.Replace(',', '.'), NumberStyles.Float, CultureInfo.InvariantCulture, out value);

            if (!parsed)
            {
                error = fieldName + " must be a number, e.g. 0.055.";
                return false;
            }

            if (value <= 0.0 || double.IsNaN(value) || double.IsInfinity(value))
            {
                error = fieldName + " must be greater than zero.";
                return false;
            }

            return true;
        }
    }
}


// ===== FILE: Services\Logger.cs =====
using System;
using System.Collections.Generic;
using System.IO;
using System.Text;

namespace MultiOffsetBothSidesWithLayerExtra.Services
{
    public enum LogLevel { INFO, WARN, ERROR, DEBUG }

    public class LogEntry
    {
        public DateTime Timestamp { get; }
        public LogLevel Level { get; }
        public string Category { get; }
        public string Message { get; }

        public LogEntry(LogLevel level, string category, string message)
        {
            Timestamp = DateTime.Now;
            Level = level;
            Category = category;
            Message = message;
        }

        /// <summary>
        /// Matches the requested display format:
        /// 05:29:43  [INFO]   [PvSplitApi]  SplitDataLines.Add(Double rawStation, Double datum)
        /// </summary>
        public override string ToString()
        {
            return string.Format("{0:HH:mm:ss}  [{1,-5}]  [{2}]  {3}",
                Timestamp, Level, Category, Message);
        }
    }

    /// <summary>
    /// Central, in-memory run log for the whole session. MainForm binds its
    /// log DataGridView to Entries and repaints on LogAdded. Entries are
    /// also optionally written straight through to a rolling file so a run
    /// can be reviewed/diagnosed later (or fed back in to improve the tool),
    /// without needing the AutoCAD session to still be open.
    ///
    /// Design note: this class deliberately does NOT attempt to "learn"
    /// from the log automatically. Auto-modifying code from a runtime log
    /// is a reliability risk in a CAD production tool — the log is meant
    /// to be reviewed by a human (or pasted to an LLM) to drive the next
    /// manual code change, same as any other diagnostic log.
    /// </summary>
    public static class Logger
    {
        public static List<LogEntry> Entries { get; } = new List<LogEntry>();

        /// <summary>Raised after a new entry is appended, so the UI can refresh.</summary>
        public static event Action<LogEntry> LogAdded;

        private static readonly object _sync = new object();
        private static string _logFilePath;

        /// <summary>
        /// Call once at startup (see ExtensionApplication) to enable
        /// automatic append-to-file logging in addition to the in-memory list.
        /// </summary>
        public static void EnableFileLogging(string folder)
        {
            try
            {
                Directory.CreateDirectory(folder);
                _logFilePath = Path.Combine(folder,
                    "MultiOffset_" + DateTime.Now.ToString("yyyy-MM-dd") + ".log");
            }
            catch
            {
                _logFilePath = null; // file logging is best-effort only
            }
        }

        public static void Info(string category, string message) => Add(LogLevel.INFO, category, message);
        public static void Warn(string category, string message) => Add(LogLevel.WARN, category, message);
        public static void Error(string category, string message) => Add(LogLevel.ERROR, category, message);
        public static void Debug(string category, string message) => Add(LogLevel.DEBUG, category, message);

        public static void Add(LogLevel level, string category, string message)
        {
            var entry = new LogEntry(level, category, message);

            lock (_sync)
            {
                Entries.Add(entry);
                AppendToFile(entry);
            }

            LogAdded?.Invoke(entry);
        }

        private static void AppendToFile(LogEntry entry)
        {
            if (string.IsNullOrEmpty(_logFilePath)) return;
            try
            {
                File.AppendAllText(_logFilePath, entry + Environment.NewLine, Encoding.UTF8);
            }
            catch
            {
                // Never let logging failures break the actual command.
            }
        }

        /// <summary>Explicit "Save log as..." for the current in-memory session.</summary>
        public static void SaveAs(string filePath)
        {
            var sb = new StringBuilder();
            lock (_sync)
            {
                foreach (var e in Entries)
                    sb.AppendLine(e.ToString());
            }
            File.WriteAllText(filePath, sb.ToString(), Encoding.UTF8);
        }

        public static void Clear()
        {
            lock (_sync) { Entries.Clear(); }
        }
    }
}


// ===== FILE: Services\ProfileStore.cs =====
using System;
using System.Collections.Generic;
using System.IO;
using System.Xml.Serialization;
using MultiOffsetBothSidesWithLayerExtra.Models;

namespace MultiOffsetBothSidesWithLayerExtra.Services
{
    /// <summary>
    /// Loads/saves the profile list and per-group checkbox defaults.
    ///
    /// This replaces the LISP approach of rewriting the tool's own .lsp
    /// source file between sentinel comments — clever, but fragile (breaks
    /// if the file gets reformatted/moved, no schema validation, no easy
    /// diffing). Here it's a plain XML file in %APPDATA%, which:
    ///   - survives a DLL update/reinstall (it's not inside the DLL)
    ///   - is human-readable/editable if something goes wrong
    ///   - never risks corrupting the tool's own code
    /// </summary>
    public static class ProfileStore
    {
        [Serializable]
        public class StoreData
        {
            public List<ProfileEntry> Profiles { get; set; } = new List<ProfileEntry>();
            public List<GroupOptions> GroupOptions { get; set; } = new List<GroupOptions>();
        }

        private static string DefaultPath =>
            Path.Combine(
                Environment.GetFolderPath(Environment.SpecialFolder.ApplicationData),
                "MultiOffsetBothSidesWithLayerExtra", "profiles.xml");

        public static List<ProfileEntry> Profiles { get; private set; }
        public static List<GroupOptions> GroupOpts { get; private set; }

        public static void Load(string path = null)
        {
            path = path ?? DefaultPath;

            if (File.Exists(path))
            {
                try
                {
                    var serializer = new XmlSerializer(typeof(StoreData));
                    using (var stream = File.OpenRead(path))
                    {
                        var data = (StoreData)serializer.Deserialize(stream);
                        Profiles = data.Profiles ?? SeedProfiles();
                        GroupOpts = (data.GroupOptions != null && data.GroupOptions.Count > 0)
                            ? data.GroupOptions
                            : GroupOptions.Defaults();
                    }
                    Logger.Info("ProfileStore", $"Loaded {Profiles.Count} profile(s) from {path}");
                    return;
                }
                catch (Exception ex)
                {
                    Logger.Error("ProfileStore", $"Failed to load {path}: {ex.Message}. Falling back to defaults.");
                }
            }

            Profiles = SeedProfiles();
            GroupOpts = GroupOptions.Defaults();
            Logger.Info("ProfileStore", "No saved profile file found — using built-in defaults.");
        }

        public static void Save(string path = null)
        {
            path = path ?? DefaultPath;
            try
            {
                Directory.CreateDirectory(Path.GetDirectoryName(path));
                var data = new StoreData { Profiles = Profiles, GroupOptions = GroupOpts };
                var serializer = new XmlSerializer(typeof(StoreData));
                using (var stream = File.Create(path))
                {
                    serializer.Serialize(stream, data);
                }
                Logger.Info("ProfileStore", $"Saved {Profiles.Count} profile(s) to {path}");
            }
            catch (Exception ex)
            {
                Logger.Error("ProfileStore", $"Failed to save {path}: {ex.Message}");
            }
        }

        public static GroupOptions RowFor(string groupKey)
        {
            foreach (var g in GroupOpts)
                if (g.GroupKey == groupKey)
                    return g;

            // Safe fallback: everything editable, nothing locked.
            return new GroupOptions(groupKey, GroupCheckMode.Checked, GroupCheckMode.Checked,
                                     GroupCheckMode.Checked, GroupCheckMode.Checked);
        }

        /// <summary>Built-in profile catalogue — ported 1:1 from the LISP *ol-profiles*.</summary>
        private static List<ProfileEntry> SeedProfiles()
        {
            var list = new List<ProfileEntry>();

            for (int n = 1; n <= 9; n++)
                list.Add(new ProfileEntry($"{n}_Schutzrohr.DN 110", 0.0550, 0.0550,
                    "VA_Schutzrohr", n, 11, "STRICHLINIE", 25));

            for (int n = 1; n <= 9; n++)
                list.Add(new ProfileEntry($"{n}_Schutzrohr.DN 160", 0.0800, 0.0800,
                    "VA_Schutzrohr_160", n, 11, "STRICHLINIE", 25));

            list.Add(new ProfileEntry("KK Gr. I i.F_220X275", 0.1100, 0.1100,
                "VA_KTB_KK_Gr._I_i.F_220X275", 1, 11, "Continuous", -3));
            list.Add(new ProfileEntry("KK Gr. II i.F_400X275", 0.2000, 0.2000,
                "VA_KTB_KK_Gr._II_i.F_400X275", 1, 11, "Continuous", -3));
            list.Add(new ProfileEntry("KK Gr. IIIa i.F_515X275", 0.2575, 0.2575,
                "VA_KTB_KK_Gr._IIIa_i.F_515X275", 1, 11, "Continuous", -3));
            list.Add(new ProfileEntry("KK Gr. IV i.F_700X285", 0.3500, 0.3500,
                "VA_KTB_KK_Gr._IV_i.F_700X285", 1, 11, "Continuous", -3));

            (string name, double off)[] dn =
            {
                ("DN300_4xDN110x6.3", 0.1500), ("DN400_7xDN110x6.3", 0.2000),
                ("DN500_11xDN110x6.3", 0.2500), ("DN600_17xDN110x6.3", 0.3000),
                ("DN700_23xDN110x6.3", 0.3500), ("DN800_29xDN110x6.3", 0.4000),
                ("DN900_38xDN110x6.3", 0.4500), ("DN1000_50xDN110x6.3", 0.5000),
            };
            foreach (var d in dn)
                list.Add(new ProfileEntry(d.name, d.off, d.off,
                    "VA_KTB_" + d.name, 1, 11, "STRICHLINIE", -3));

            return list;
        }
    }
}


// ===== FILE: Services\LayerManager.cs =====
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.Colors;

namespace MultiOffsetBothSidesWithLayerExtra.Services
{
    /// <summary>
    /// Layer creation/assignment helper. Equivalent of the LISP
    /// OL-EnsureLayer / OL-SetEntityLayer, but transaction-based.
    /// </summary>
    public static class LayerManager
    {
        /// <summary>Creates the layer (with color/linetype/lineweight) if it doesn't exist yet.</summary>
        public static void EnsureLayer(Database db, Transaction tr, string name,
            int colorIndex = 7, string linetype = "Continuous", int lineweight = -3)
        {
            if (string.IsNullOrEmpty(name)) return;

            var lt = (LayerTable)tr.GetObject(db.LayerTableId, OpenMode.ForRead);
            if (lt.Has(name)) return;

            lt.UpgradeOpen();
            var ltr = new LayerTableRecord
            {
                Name = name,
                Color = Color.FromColorIndex(ColorMethod.ByAci, (short)colorIndex)
            };

            ObjectId lineTypeId = TryResolveLinetype(db, tr, linetype);
            ltr.LinetypeObjectId = lineTypeId.IsNull ? ContinuousLinetypeId(db, tr) : lineTypeId;
            ltr.LineWeight = (LineWeight)lineweight;

            lt.Add(ltr);
            tr.AddNewlyCreatedDBObject(ltr, true);

            Logger.Info("LayerManager", $"Created layer '{name}'.");
        }

        public static void SetEntityLayer(Transaction tr, ObjectId id, string layerName)
        {
            if (string.IsNullOrEmpty(layerName) || id == ObjectId.Null) return;
            var ent = (Entity)tr.GetObject(id, OpenMode.ForWrite, true);
            ent.Layer = layerName;
        }

        private static ObjectId TryResolveLinetype(Database db, Transaction tr, string linetype)
        {
            if (string.IsNullOrEmpty(linetype) || linetype == "Continuous")
                return ContinuousLinetypeId(db, tr);

            if (TryGetLinetypeId(db, tr, linetype, out ObjectId id))
                return id;

            // Best-effort auto-load.  STRICHLINIE is normally in the ISO linetype
            // file; acad.lin is tried as fallback for non-ISO templates.
            string[] files = { "acadiso.lin", "acad.lin" };
            foreach (string file in files)
            {
                try
                {
                    db.LoadLineTypeFile(linetype, file);
                    if (TryGetLinetypeId(db, tr, linetype, out id))
                    {
                        Logger.Info("LayerManager", $"Loaded linetype '{linetype}' from {file}.");
                        return id;
                    }
                }
                catch
                {
                    // Try the next known linetype source.
                }
            }

            Logger.Warn("LayerManager", $"Linetype '{linetype}' not loaded and could not be loaded — using Continuous instead.");
            return ContinuousLinetypeId(db, tr);
        }

        private static bool TryGetLinetypeId(Database db, Transaction tr, string linetype, out ObjectId id)
        {
            id = ObjectId.Null;
            var table = (LinetypeTable)tr.GetObject(db.LinetypeTableId, OpenMode.ForRead);
            if (!table.Has(linetype)) return false;
            id = table[linetype];
            return true;
        }

        private static ObjectId ContinuousLinetypeId(Database db, Transaction tr)
        {
            var table = (LinetypeTable)tr.GetObject(db.LinetypeTableId, OpenMode.ForRead);
            return table["Continuous"];
        }
    }
}


// ===== FILE: Services\VersionInfo.cs =====
using System;
using System.IO;
using System.Reflection;

namespace MultiOffsetBothSidesWithLayerExtra.Services
{
    /// <summary>
    /// Produces the "each time a new version is loaded" banner:
    ///   1.0.001_03.07.2026_05.29.43
    /// Format: {BuildNumber}_{dd.MM.yyyy}_{HH.mm.ss}
    ///
    /// BuildNumber is a hand-maintained constant (bump it yourself per
    /// release, same spirit as the LISP *ol-version* string). The date/time
    /// suffix is the DLL file's last-write timestamp, so it reflects when
    /// THIS build was actually produced/copied — not just "now" — which is
    /// what "each time a new version is loaded" is really asking for: proof
    /// you're running the build you think you're running.
    /// </summary>
    public static class VersionInfo
    {
        /// <summary>Bump this by hand on every release, e.g. "1.0.001" -> "1.0.002".</summary>
        public const string BuildNumber = "1.0.006";

        public static string GetBanner()
        {
            string stamp;
            try
            {
                string dllPath = Assembly.GetExecutingAssembly().Location;
                DateTime built = File.GetLastWriteTime(dllPath);
                stamp = built.ToString("dd.MM.yyyy_HH.mm.ss");
            }
            catch
            {
                stamp = DateTime.Now.ToString("dd.MM.yyyy_HH.mm.ss");
            }

            return $"{BuildNumber}_{stamp}";
        }
    }
}


// ===== FILE: Geometry\OffsetPlan.cs =====
using System;
using System.Collections.Generic;
using MultiOffsetBothSidesWithLayerExtra.Models;

namespace MultiOffsetBothSidesWithLayerExtra.Geometry
{
    /// <summary>
    /// Immutable offset plan shared by the WinForms preview, model-space transient
    /// preview, and final DWG Apply operation. Keeping the distance calculation in
    /// one place prevents preview/apply drift when pipe count, extras, or start
    /// mode logic changes.
    /// </summary>
    public sealed class OffsetPlan
    {
        public const double ZeroTolerance = 1e-9;

        public sealed class PlannedOffset
        {
            public PlannedOffset(double distance, OffsetSide side, bool isOuterPipeBoundary)
            {
                Distance = distance;
                Side = side;
                IsOuterPipeBoundary = isOuterPipeBoundary;
            }

            public double Distance { get; }
            public OffsetSide Side { get; }
            public bool IsOuterPipeBoundary { get; }
        }

        public enum OffsetSide
        {
            Left,
            Right,
            ExtraLeft,
            ExtraRight
        }

        private readonly List<PlannedOffset> _pipeBoundaries = new List<PlannedOffset>();
        private readonly List<PlannedOffset> _extras = new List<PlannedOffset>();

        private OffsetPlan() { }

        public double OffsetLeft { get; private set; }
        public double OffsetRight { get; private set; }
        public double Width { get; private set; }
        public int PipeCount { get; private set; }
        public int ExtraLeft { get; private set; }
        public int ExtraRight { get; private set; }
        public double TotalOutLeft { get; private set; }
        public double TotalOutRight { get; private set; }
        public double StartShift { get; private set; }
        public double OutermostLeft { get; private set; }
        public double OutermostRight { get; private set; }

        public IReadOnlyList<PlannedOffset> PipeBoundaries => _pipeBoundaries;
        public IReadOnlyList<PlannedOffset> Extras => _extras;

        public IEnumerable<PlannedOffset> AllOffsets
        {
            get
            {
                foreach (var item in _pipeBoundaries) yield return item;
                foreach (var item in _extras) yield return item;
            }
        }

        public static OffsetPlan FromSettings(RunSettings settings)
        {
            if (settings == null) throw new ArgumentNullException(nameof(settings));
            Validate(settings);

            var plan = new OffsetPlan
            {
                OffsetLeft = settings.OffsetLeft,
                OffsetRight = settings.OffsetRight,
                Width = settings.OffsetLeft + settings.OffsetRight,
                PipeCount = Math.Max(1, settings.PipeCount),
                ExtraLeft = Math.Max(0, settings.ExtraLeft),
                ExtraRight = Math.Max(0, settings.ExtraRight)
            };

            plan.OutermostLeft = plan.PipeCount % 2 == 0
                ? (plan.PipeCount / 2.0) * plan.Width
                : plan.OffsetLeft + (plan.PipeCount - 1) / 2.0 * plan.Width;
            plan.OutermostRight = plan.PipeCount % 2 == 0
                ? (plan.PipeCount / 2.0) * plan.Width
                : plan.OffsetRight + (plan.PipeCount - 1) / 2.0 * plan.Width;

            plan.TotalOutLeft = plan.OutermostLeft + plan.ExtraLeft * plan.Width;
            plan.TotalOutRight = plan.OutermostRight + plan.ExtraRight * plan.Width;
            plan.StartShift = ComputeStartShift(settings.StartMode, plan.TotalOutLeft, plan.TotalOutRight);

            plan.BuildPipeBoundaryOffsets();
            plan.BuildExtraOffsets();
            return plan;
        }

        public IEnumerable<double> SchutzrohrPipeCenterlineDistances(double diameter)
        {
            if (diameter <= 0.0 || double.IsNaN(diameter) || double.IsInfinity(diameter))
                yield break;

            for (int k = 1; k <= PipeCount; k++)
                yield return (k - (PipeCount + 1) / 2.0) * diameter - StartShift;
        }

        private void BuildPipeBoundaryOffsets()
        {
            if (PipeCount == 1)
            {
                AddBoundary(-(OffsetLeft) - StartShift, OffsetSide.Left, true);
                AddBoundary(OffsetRight - StartShift, OffsetSide.Right, true);
            }
            else if (PipeCount % 2 == 0)
            {
                for (int i = 1; i <= PipeCount / 2; i++)
                {
                    bool outer = i == PipeCount / 2;
                    double cur = i * Width;
                    AddBoundary(-cur - StartShift, OffsetSide.Left, outer);
                    AddBoundary(cur - StartShift, OffsetSide.Right, outer);
                }
            }
            else
            {
                AddBoundary(-OffsetLeft - StartShift, OffsetSide.Left, PipeCount == 1);
                AddBoundary(OffsetRight - StartShift, OffsetSide.Right, PipeCount == 1);

                for (int i = 1; i <= (PipeCount - 1) / 2; i++)
                {
                    bool outer = i == (PipeCount - 1) / 2;
                    AddBoundary(-(OffsetLeft + i * Width) - StartShift, OffsetSide.Left, outer);
                    AddBoundary((OffsetRight + i * Width) - StartShift, OffsetSide.Right, outer);
                }
            }
        }

        private void BuildExtraOffsets()
        {
            for (int k = 1; k <= ExtraRight; k++)
                _extras.Add(new PlannedOffset((OutermostRight + k * Width) - StartShift, OffsetSide.ExtraRight, false));

            for (int k = 1; k <= ExtraLeft; k++)
                _extras.Add(new PlannedOffset(-(OutermostLeft + k * Width) - StartShift, OffsetSide.ExtraLeft, false));
        }

        private void AddBoundary(double distance, OffsetSide side, bool outer)
        {
            _pipeBoundaries.Add(new PlannedOffset(distance, side, outer));
        }

        public static double ComputeStartShift(StartMode mode, double totalOutLeft, double totalOutRight)
        {
            switch (mode)
            {
                case StartMode.OffsetUp:
                case StartMode.SchutzrohrExterior:
                    return -totalOutLeft;
                case StartMode.OffsetDown:
                    return totalOutRight;
                default:
                    return 0.0;
            }
        }

        private static void Validate(RunSettings settings)
        {
            if (settings.OffsetLeft <= 0.0 || double.IsNaN(settings.OffsetLeft) || double.IsInfinity(settings.OffsetLeft))
                throw new ArgumentOutOfRangeException(nameof(settings.OffsetLeft), "Offset L must be a positive number.");

            if (settings.OffsetRight <= 0.0 || double.IsNaN(settings.OffsetRight) || double.IsInfinity(settings.OffsetRight))
                throw new ArgumentOutOfRangeException(nameof(settings.OffsetRight), "Offset R must be a positive number.");

            double width = settings.OffsetLeft + settings.OffsetRight;
            if (width <= 0.0 || double.IsNaN(width) || double.IsInfinity(width))
                throw new ArgumentOutOfRangeException(nameof(width), "Offset L + Offset R must be a positive number.");
        }
    }
}


// ===== FILE: Geometry\OffsetRunResult.cs =====
using System.Collections.Generic;
using Autodesk.AutoCAD.DatabaseServices;

namespace MultiOffsetBothSidesWithLayerExtra.Geometry
{
    /// <summary>
    /// Captures the database changes made by one Apply/Run operation so the
    /// modeless WinForms tool can implement its own "Undo last" button without
    /// relying on the command-line UNDO stack.  Created entities are erased; the
    /// picked source objects have their original layers restored and are unerased
    /// when the run deleted them.
    /// </summary>
    public class OffsetRunResult
    {
        public List<ObjectId> CreatedIds { get; } = new List<ObjectId>();
        public List<ObjectId> ErasedOriginalIds { get; } = new List<ObjectId>();
        public Dictionary<ObjectId, string> OriginalLayers { get; } = new Dictionary<ObjectId, string>();

        public void RememberOriginalLayer(ObjectId id, string layerName)
        {
            if (id.IsNull || OriginalLayers.ContainsKey(id)) return;
            OriginalLayers[id] = layerName;
        }

        public void RememberCreated(ObjectId id)
        {
            if (!id.IsNull) CreatedIds.Add(id);
        }

        public void RememberErasedOriginal(ObjectId id)
        {
            if (!id.IsNull) ErasedOriginalIds.Add(id);
        }
    }
}


// ===== FILE: Geometry\OffsetEngine.cs =====
using System;
using System.Collections.Generic;
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.Geometry;
using MultiOffsetBothSidesWithLayerExtra.Models;
using MultiOffsetBothSidesWithLayerExtra.Services;

namespace MultiOffsetBothSidesWithLayerExtra.Geometry
{
    /// <summary>
    /// Core pipe/duct offset engine. This is the direct port of the LISP
    /// "MODE B: SELECT CENTERLINES PROCESSING LOOP" plus the Schutzrohr
    /// post-offset logic (even-pipe-count inner-touch line, optional
    /// pipe-centerline lines) and OL-ProcessParallelOptions (close/join).
    ///
    /// Mode A (2 points) and Mode C (change existing KK/parallel pair) are
    /// intentionally NOT ported yet — stubbed at the bottom with a clear
    /// NotImplementedException so nothing silently does the wrong thing.
    /// Select-centerlines (Mode B) is the flow the Schutzrohr/group-options
    /// work targets, so it gets full fidelity first.
    /// </summary>
    public class OffsetEngine
    {
        private readonly Database _db;

        public OffsetEngine(Database db)
        {
            _db = db;
        }

        public OffsetRunResult RunSelectCenterlines(RunSettings s, IEnumerable<ObjectId> pickedIds)
        {
            var result = new OffsetRunResult();
            using (var tr = _db.TransactionManager.StartTransaction())
            {
                var plan = OffsetPlan.FromSettings(s);
                int pipeNum = plan.PipeCount;
                double startShift = plan.StartShift;
                Logger.Debug("OffsetEngine", $"StartMode={s.StartMode} startShift={startShift:F6}");

                if (s.UseTargetLayer && !string.IsNullOrEmpty(s.TargetLayer))
                    LayerManager.EnsureLayer(_db, tr, s.TargetLayer, s.Profile?.ColorIndex ?? 7,
                        s.Profile?.Linetype ?? "Continuous", s.Profile?.Lineweight ?? -3);

                if (s.PpoCenter || (s.Profile?.IsSchutzrohr ?? false))
                    LayerManager.EnsureLayer(_db, tr, RunSettings.HilfLayer, 6, "Continuous", -3);

                bool schutz = s.Profile?.IsSchutzrohr ?? false;
                double? diam = s.Profile?.SchutzrohrDiameter;
                string layerName = (s.UseTargetLayer && !string.IsNullOrEmpty(s.TargetLayer)) ? s.TargetLayer : null;

                foreach (ObjectId objId in pickedIds)
                {
                    if (!objId.IsValid || objId.IsErased) continue;

                    Logger.Info("OffsetEngine", $"Processing {objId} ({DescribeType(tr, objId)})");

                    if (tr.GetObject(objId, OpenMode.ForRead) is Entity originalEnt)
                        result.RememberOriginalLayer(objId, originalEnt.Layer);

                    // Original object layer handling.
                    if (schutz)
                    {
                        if (layerName != null) LayerManager.SetEntityLayer(tr, objId, layerName);
                    }
                    else if (s.OrigOnHilf)
                    {
                        LayerManager.SetEntityLayer(tr, objId, RunSettings.HilfLayer);
                    }
                    else if (layerName != null)
                    {
                        LayerManager.SetEntityLayer(tr, objId, layerName);
                    }

                    ObjectId entL = ObjectId.Null, entR = ObjectId.Null;
                    foreach (var planned in plan.PipeBoundaries)
                    {
                        var createdId = OffsetOrReuse(tr, objId, planned.Distance, layerName, !s.DeleteOriginal, result);
                        if (planned.IsOuterPipeBoundary)
                        {
                            if (planned.Side == OffsetPlan.OffsetSide.Left)
                                entL = createdId;
                            else if (planned.Side == OffsetPlan.OffsetSide.Right)
                                entR = createdId;
                        }
                    }

                    foreach (var planned in plan.Extras)
                        OffsetOrReuse(tr, objId, planned.Distance, layerName, !s.DeleteOriginal, result);

                    if (s.DeleteOriginal)
                    {
                        var ent = (Entity)tr.GetObject(objId, OpenMode.ForWrite);
                        ent.Erase();
                        result.RememberErasedOriginal(objId);
                    }

                    if (schutz && !s.DeleteOriginal)
                    {
                        if (pipeNum % 2 == 0)
                        {
                            if (s.StartMode == StartMode.Centerline)
                                DuplicateOnto(tr, objId, layerName, result);
                            else
                                OffsetOrReuse(tr, objId, -startShift, layerName, false, result);
                        }

                        if (s.PpoCenter && diam.HasValue)
                            SchutzrohrPipeCenterlines(tr, objId, plan, diam.Value, RunSettings.HilfLayer, result);
                    }

                    if (!schutz && entL != ObjectId.Null && entR != ObjectId.Null)
                    {
                        if (s.PpoCenter && s.PpoClose)
                            CreateCenterline(tr, entL, entR, RunSettings.HilfLayer, result);
                        ProcessParallelOptions(tr, entL, entR, s.PpoClose, result);
                    }
                }

                tr.Commit();
            }
            return result;
        }

        // ------------------------------------------------------------------
        // Offset a curve by `distance`; if distance is ~0 and the original
        // is being kept, reuse the original entity instead of creating a
        // fully coincident duplicate (port of OL-OffsetOrReuse, v3.0 fix).
        // ------------------------------------------------------------------
        private ObjectId OffsetOrReuse(Transaction tr, ObjectId sourceId, double distance, string layerName, bool keepOriginal, OffsetRunResult result)
        {
            if (Math.Abs(distance) < 1e-9 && keepOriginal)
            {
                if (!string.IsNullOrEmpty(layerName))
                    LayerManager.SetEntityLayer(tr, sourceId, layerName);
                return sourceId;
            }

            var curve = (Curve)tr.GetObject(sourceId, OpenMode.ForRead);

            DBObjectCollection offsetCurves;
            try
            {
                offsetCurves = curve.GetOffsetCurves(distance);
            }
            catch (Autodesk.AutoCAD.Runtime.Exception ex)
            {
                Logger.Warn("OffsetEngine", $"Offset failed at distance {distance:F4} for {sourceId}: {ex.Message}");
                return ObjectId.Null;
            }

            if (offsetCurves.Count == 0) return ObjectId.Null;

            var newEnt = (Entity)offsetCurves[0];
            var btr = (BlockTableRecord)tr.GetObject(_db.CurrentSpaceId, OpenMode.ForWrite);
            ObjectId id = btr.AppendEntity(newEnt);
            tr.AddNewlyCreatedDBObject(newEnt, true);
            result?.RememberCreated(id);

            if (!string.IsNullOrEmpty(layerName))
                newEnt.Layer = layerName;

            for (int i = 1; i < offsetCurves.Count; i++)
                offsetCurves[i].Dispose();

            return id;
        }

        /// <summary>Literal duplicate of an entity onto (optionally) a target layer — the
        /// Centerline-mode even-N inner-touch line, matching OL-SchutzrohrExtraCentreLine.</summary>
        private void DuplicateOnto(Transaction tr, ObjectId sourceId, string layerName, OffsetRunResult result)
        {
            var src = (Entity)tr.GetObject(sourceId, OpenMode.ForRead);
            var clone = (Entity)src.Clone();
            var btr = (BlockTableRecord)tr.GetObject(_db.CurrentSpaceId, OpenMode.ForWrite);
            ObjectId id = btr.AppendEntity(clone);
            tr.AddNewlyCreatedDBObject(clone, true);
            result?.RememberCreated(id);
            if (!string.IsNullOrEmpty(layerName)) clone.Layer = layerName;
        }

        /// <summary>Places N pipe-axis reference lines on _HILFSLINIEN, one per pipe,
        /// at offsets (k - (N+1)/2) * D for k=1..N. Port of OL-SchutzrohrPipeCenterlines.</summary>
        private void SchutzrohrPipeCenterlines(Transaction tr, ObjectId sourceId, OffsetPlan plan,
            double diameter, string hilfLayer, OffsetRunResult result)
        {
            foreach (double off in plan.SchutzrohrPipeCenterlineDistances(diameter))
                OffsetOrReuse(tr, sourceId, off, hilfLayer, false, result);
        }

        /// <summary>Port of OL-ProcessParallelOptions: closes entL/entR into one polyline
        /// with two connecting cap lines, choosing the shorter-total-distance pairing.</summary>
        private void ProcessParallelOptions(Transaction tr, ObjectId entLId, ObjectId entRId, bool ppoClose, OffsetRunResult result)
        {
            if (!ppoClose) return;
            if (!(tr.GetObject(entLId, OpenMode.ForWrite) is Polyline plL)) return;
            if (!(tr.GetObject(entRId, OpenMode.ForWrite) is Polyline plR)) return;

            if (plL.Closed) plL.Closed = false;
            if (plR.Closed) plR.Closed = false;

            Point3d s1 = plL.GetPoint3dAt(0), e1 = plL.GetPoint3dAt(plL.NumberOfVertices - 1);
            Point3d s2 = plR.GetPoint3dAt(0), e2 = plR.GetPoint3dAt(plR.NumberOfVertices - 1);

            double dA = s1.DistanceTo(s2) + e1.DistanceTo(e2);
            double dB = s1.DistanceTo(e2) + e1.DistanceTo(s2);

            string layer = plL.Layer;
            var btr = (BlockTableRecord)tr.GetObject(_db.CurrentSpaceId, OpenMode.ForWrite);

            ObjectId MakeLine(Point3d a, Point3d b)
            {
                var line = new Line(a, b) { Layer = layer };
                var id = btr.AppendEntity(line);
                tr.AddNewlyCreatedDBObject(line, true);
                result?.RememberCreated(id);
                return id;
            }

            ObjectId line1Id, line2Id;
            if (dA <= dB)
            {
                line1Id = MakeLine(s1, s2);
                line2Id = MakeLine(e1, e2);
            }
            else
            {
                line1Id = MakeLine(s1, e2);
                line2Id = MakeLine(e1, s2);
            }

            try
            {
                var toJoin = new[]
                {
                    (Entity)tr.GetObject(entRId, OpenMode.ForWrite),
                    (Entity)tr.GetObject(line1Id, OpenMode.ForWrite),
                    (Entity)tr.GetObject(line2Id, OpenMode.ForWrite),
                };
                plL.JoinEntities(toJoin);
                Logger.Info("OffsetEngine", "Joined offset pair into a single closed polyline.");
            }
            catch (Autodesk.AutoCAD.Runtime.Exception ex)
            {
                Logger.Warn("OffsetEngine",
                    $"JoinEntities failed ({ex.Message}) — entities left unjoined. " +
                    "Verify with a live drawing: this is the one step in this port most likely to need tuning.");
            }
        }

        private void CreateCenterline(Transaction tr, ObjectId entLId, ObjectId entRId, string hilfLayer, OffsetRunResult result)
        {
            var plL = (Polyline)tr.GetObject(entLId, OpenMode.ForRead);
            var plR = (Polyline)tr.GetObject(entRId, OpenMode.ForRead);
            if (plL.NumberOfVertices < 2 || plR.NumberOfVertices < 2) return;

            Point2d a1 = plL.GetPoint2dAt(0), a2 = plL.GetPoint2dAt(plL.NumberOfVertices - 1);
            Point2d b1 = plR.GetPoint2dAt(0), b2 = plR.GetPoint2dAt(plR.NumberOfVertices - 1);

            var mid1 = new Point2d((a1.X + b1.X) / 2.0, (a1.Y + b1.Y) / 2.0);
            var mid2 = new Point2d((a2.X + b2.X) / 2.0, (a2.Y + b2.Y) / 2.0);

            var cl = new Polyline();
            cl.AddVertexAt(0, mid1, 0, 0, 0);
            cl.AddVertexAt(1, mid2, 0, 0, 0);
            cl.Layer = hilfLayer;

            var btr = (BlockTableRecord)tr.GetObject(_db.CurrentSpaceId, OpenMode.ForWrite);
            ObjectId id = btr.AppendEntity(cl);
            tr.AddNewlyCreatedDBObject(cl, true);
            result?.RememberCreated(id);
        }

        private static string DescribeType(Transaction tr, ObjectId id)
        {
            try { return tr.GetObject(id, OpenMode.ForRead).GetType().Name; }
            catch { return "?"; }
        }

        // ------------------------------------------------------------------
        // NOT YET PORTED — see class remarks.
        // ------------------------------------------------------------------
        public void RunTwoPoints(RunSettings s, Point3d p1, Point3d p2) =>
            throw new NotImplementedException("Mode A (2 Points) is not ported yet.");

        public void RunChangeExisting(RunSettings s, IEnumerable<ObjectId> ids) =>
            throw new NotImplementedException("Mode C (Change existing) is not ported yet.");
    }
}


// ===== FILE: Geometry\GeometryUtils.cs =====
using System.Collections.Generic;
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.Geometry;

namespace MultiOffsetBothSidesWithLayerExtra.Geometry
{
    /// <summary>
    /// Geometry helpers shared by the offset engine and the preview panel.
    /// Port of the LISP OL-IsStraightGeometry plus a point-sampling helper
    /// for the 2D preview (Curve.GetPointAtParameter / Polyline.GetPoint2dAt).
    /// </summary>
    public static class GeometryUtils
    {
        /// <summary>
        /// True only if the entity is composed ENTIRELY of straight segments:
        ///   - Line                                   -> always true
        ///   - Polyline (LWPOLYLINE) with no bulge     -> true, else false
        ///   - Polyline2d (old-style) with no bulge/    -> true, else false
        ///     fit/spline flag
        ///   - Spline, Arc, anything else               -> false
        /// </summary>
        public static bool IsStraightGeometry(Transaction tr, ObjectId id)
        {
            var obj = tr.GetObject(id, OpenMode.ForRead);

            if (obj is Line)
                return true;

            if (obj is Polyline pl)
            {
                for (int i = 0; i < pl.NumberOfVertices; i++)
                {
                    if (pl.GetBulgeAt(i) != 0.0)
                        return false;
                }
                return true;
            }

            if (obj is Polyline2d pl2d)
            {
                if (pl2d.PolyType == Poly2dType.FitCurvePoly ||
                    pl2d.PolyType == Poly2dType.CubicSplinePoly ||
                    pl2d.PolyType == Poly2dType.QuadSplinePoly)
                    return false;

                foreach (ObjectId vId in pl2d)
                {
                    var v = (Vertex2d)tr.GetObject(vId, OpenMode.ForRead);
                    if (v.Bulge != 0.0)
                        return false;
                }
                return true;
            }

            // Spline, Arc, Polyline3d, or anything else: not straight-only.
            return false;
        }

        /// <summary>
        /// Sample a DB-resident curve into a list of 2D world points suitable for
        /// the preview panel (Graphics.DrawLines after world->pixel transform).
        /// </summary>
        public static List<Point2d> SamplePoints(Transaction tr, ObjectId id, int arcSegments = 24)
        {
            var obj = tr.GetObject(id, OpenMode.ForRead);
            return obj is Curve curve ? SampleCurve(curve, arcSegments) : new List<Point2d>();
        }

        /// <summary>
        /// Sample an in-memory curve. This overload is used for previewing
        /// Curve.GetOffsetCurves() results before they are appended to the DWG.
        /// </summary>
        public static List<Point2d> SampleCurve(Curve curve, int arcSegments = 24)
        {
            var pts = new List<Point2d>();
            if (curve == null) return pts;

            if (curve is Line line)
            {
                pts.Add(new Point2d(line.StartPoint.X, line.StartPoint.Y));
                pts.Add(new Point2d(line.EndPoint.X, line.EndPoint.Y));
                return pts;
            }

            if (curve is Polyline pl)
            {
                for (int i = 0; i < pl.NumberOfVertices; i++)
                {
                    pts.Add(pl.GetPoint2dAt(i));

                    if (i < pl.NumberOfVertices - 1 || pl.Closed)
                    {
                        double bulge = pl.GetBulgeAt(i);
                        if (bulge != 0.0)
                        {
                            // Arc segment: densify with a few extra points.
                            int next = (i + 1) % pl.NumberOfVertices;
                            var p1 = pl.GetPoint3dAt(i);
                            var p2 = pl.GetPoint3dAt(next);
                            AppendArcSamples(pts, p1, p2, bulge, arcSegments / 4);
                        }
                    }
                }
                return pts;
            }

            // Generic fallback for Arc / Spline / Polyline2d / Polyline3d:
            // sample evenly along the parameter range.
            double sp = curve.StartParam;
            double ep = curve.EndParam;
            int n = System.Math.Max(2, arcSegments);
            for (int i = 0; i <= n; i++)
            {
                double t = sp + (ep - sp) * i / n;
                Point3d p = curve.GetPointAtParameter(t);
                pts.Add(new Point2d(p.X, p.Y));
            }
            return pts;
        }

        private static void AppendArcSamples(List<Point2d> pts, Point3d p1, Point3d p2, double bulge, int segments)
        {
            segments = System.Math.Max(2, segments);
            double included = 4.0 * System.Math.Atan(bulge);
            double chord = p1.DistanceTo(p2);
            if (chord < 1e-9) return;

            double radius = chord / (2.0 * System.Math.Sin(included / 2.0));
            double midBulgeSign = bulge < 0 ? -1 : 1;

            Point3d mid = new Point3d((p1.X + p2.X) / 2.0, (p1.Y + p2.Y) / 2.0, 0);
            Vector3d chordVec = (p2 - p1).GetNormal();
            Vector3d perp = new Vector3d(-chordVec.Y, chordVec.X, 0) * midBulgeSign;
            double sagitta = radius - System.Math.Sqrt(System.Math.Max(0, radius * radius - (chord / 2.0) * (chord / 2.0)));
            Point3d apex = mid + perp * sagitta;

            for (int i = 1; i < segments; i++)
            {
                double t = (double)i / segments;
                // Quadratic Bezier-ish approximation through the bulge apex —
                // fine for a lightweight preview, not for production geometry.
                double x = (1 - t) * (1 - t) * p1.X + 2 * (1 - t) * t * apex.X + t * t * p2.X;
                double y = (1 - t) * (1 - t) * p1.Y + 2 * (1 - t) * t * apex.Y + t * t * p2.Y;
                pts.Add(new Point2d(x, y));
            }
        }
    }
}


// ===== FILE: UI\LogPanel.cs =====
using System;
using System.Windows.Forms;
using MultiOffsetBothSidesWithLayerExtra.Services;

namespace MultiOffsetBothSidesWithLayerExtra.UI
{
    public sealed class LogPanel : UserControl
    {
        private readonly DataGridView _grid;
        private readonly Button _saveButton;

        public LogPanel()
        {
            Dock = DockStyle.Fill;

            _grid = new DataGridView
            {
                Dock = DockStyle.Fill,
                AllowUserToAddRows = false,
                ReadOnly = true,
                SelectionMode = DataGridViewSelectionMode.FullRowSelect,
                AutoSizeColumnsMode = DataGridViewAutoSizeColumnsMode.None,
                RowHeadersVisible = false
            };
            _grid.Columns.Add("Time", "Time");
            _grid.Columns.Add("Level", "Level");
            _grid.Columns.Add("Category", "Category");
            _grid.Columns.Add("Message", "Message");
            _grid.Columns["Time"].Width = 70;
            _grid.Columns["Level"].Width = 55;
            _grid.Columns["Category"].Width = 110;
            _grid.Columns["Message"].AutoSizeMode = DataGridViewAutoSizeColumnMode.Fill;

            _saveButton = C3DTheme.Role(new Button { Text = "Save log...", Dock = DockStyle.Bottom, Height = 26 }, C3DTheme.RoleRefresh);
            _saveButton.Click += (s, e) => SaveLog();

            Controls.Add(_grid);
            Controls.Add(_saveButton);
            Controls.Add(C3DTheme.Role(new Label { Text = "Log:", Dock = DockStyle.Top, Height = 18 }, C3DTheme.RoleMuted));

            Logger.LogAdded += OnLogAdded;
        }

        protected override void Dispose(bool disposing)
        {
            if (disposing)
                Logger.LogAdded -= OnLogAdded;
            base.Dispose(disposing);
        }

        private void OnLogAdded(LogEntry entry)
        {
            if (IsDisposed) return;
            if (InvokeRequired)
                BeginInvoke(new Action(() => AppendLogRow(entry)));
            else
                AppendLogRow(entry);
        }

        private void AppendLogRow(LogEntry entry)
        {
            int i = _grid.Rows.Add(entry.Timestamp.ToString("HH:mm:ss"), entry.Level.ToString(), entry.Category, entry.Message);
            if (i >= 0)
                _grid.FirstDisplayedScrollingRowIndex = i;
        }

        private void SaveLog()
        {
            using (var sfd = new SaveFileDialog
            {
                Filter = "Log files (*.log)|*.log|All files (*.*)|*.*",
                FileName = "MultiOffset_" + DateTime.Now.ToString("yyyy-MM-dd_HH-mm-ss") + ".log"
            })
            {
                if (sfd.ShowDialog(this) == DialogResult.OK)
                {
                    Logger.SaveAs(sfd.FileName);
                    Logger.Info("Log", "Log saved to " + sfd.FileName);
                }
            }
        }
    }
}


// ===== FILE: UI\PickedObjectsPanel.cs =====
using System;
using System.Collections.Generic;
using System.Windows.Forms;
using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.DatabaseServices;

namespace MultiOffsetBothSidesWithLayerExtra.UI
{
    public sealed class PickedObjectsPanel : UserControl
    {
        private readonly DataGridView _grid;

        public event EventHandler SelectionChanged;

        public PickedObjectsPanel()
        {
            Dock = DockStyle.Fill;

            _grid = new DataGridView
            {
                Dock = DockStyle.Fill,
                AllowUserToAddRows = false,
                AllowUserToDeleteRows = false,
                ReadOnly = true,
                SelectionMode = DataGridViewSelectionMode.FullRowSelect,
                AutoSizeColumnsMode = DataGridViewAutoSizeColumnsMode.Fill
            };
            _grid.Columns.Add("Handle", "Handle");
            _grid.Columns.Add("Type", "Type");
            _grid.Columns.Add("Layer", "Layer");
            _grid.SelectionChanged += (s, e) => SelectionChanged?.Invoke(this, EventArgs.Empty);

            Controls.Add(_grid);
            Controls.Add(C3DTheme.Role(new Label
            {
                Text = "Picked objects (click a row to highlight in the viewport):",
                Dock = DockStyle.Top,
                Height = 20
            }, C3DTheme.RoleMuted));
        }

        public void RefreshRows(Document doc, IList<ObjectId> pickedIds)
        {
            _grid.Rows.Clear();
            if (doc == null || pickedIds == null) return;

            using (var tr = doc.Database.TransactionManager.StartTransaction())
            {
                foreach (var id in pickedIds)
                {
                    if (!id.IsValid || id.IsErased) continue;
                    if (!(tr.GetObject(id, OpenMode.ForRead, true) is Entity ent)) continue;
                    _grid.Rows.Add(ent.Handle.ToString(), ent.GetType().Name, ent.Layer);
                }
                tr.Commit();
            }
        }

        public List<int> SelectedIndexes()
        {
            var indexes = new List<int>();
            foreach (DataGridViewRow row in _grid.SelectedRows)
            {
                if (row.Index >= 0)
                    indexes.Add(row.Index);
            }
            return indexes;
        }
    }
}


// ===== FILE: UI\WinFormsDebouncer.cs =====
using System;
using System.Windows.Forms;

namespace MultiOffsetBothSidesWithLayerExtra.UI
{
    /// <summary>
    /// Coalesces rapid TextChanged/ValueChanged bursts into one preview rebuild.
    /// This keeps AutoCAD transient preview responsive while typing numbers.
    /// </summary>
    public sealed class WinFormsDebouncer : IDisposable
    {
        private readonly Timer _timer;
        private readonly Action _action;

        public WinFormsDebouncer(int intervalMilliseconds, Action action)
        {
            _action = action ?? throw new ArgumentNullException(nameof(action));
            _timer = new Timer { Interval = Math.Max(50, intervalMilliseconds) };
            _timer.Tick += (s, e) =>
            {
                _timer.Stop();
                _action();
            };
        }

        public void Request()
        {
            _timer.Stop();
            _timer.Start();
        }

        public void Flush()
        {
            if (!_timer.Enabled) return;
            _timer.Stop();
            _action();
        }

        public void Dispose()
        {
            _timer.Stop();
            _timer.Dispose();
        }
    }
}


// ===== FILE: UI\ManageProfilesForm.cs =====
using System;
using System.Windows.Forms;
using MultiOffsetBothSidesWithLayerExtra.Models;
using MultiOffsetBothSidesWithLayerExtra.Services;

namespace MultiOffsetBothSidesWithLayerExtra.UI
{
    /// <summary>
    /// Replaces c:OLPredefinedProfiles. Two editable grids instead of a
    /// list_box + edit_box fields + 16 popup_lists:
    ///   - Profiles: a real DataGridView, edit cells directly, Add/Delete rows.
    ///   - Group checkbox defaults: 4 rows (one per group) x 4 combo columns
    ///     (Checked/Unchecked/Disabled) — the DCL version needed 16 separate
    ///     popup_list tiles for this; here it's one grid.
    /// </summary>
    public class ManageProfilesForm : Form
    {
        private DataGridView _dgvProfiles;
        private DataGridView _dgvGroupOpts;
        private Button _btnAdd, _btnDelete, _btnSave, _btnClose;

        public ManageProfilesForm()
        {
            Text = "MultiOffset — Manage Predefined Profiles";
            Size = new System.Drawing.Size(900, 640);
            StartPosition = FormStartPosition.CenterParent;

            BuildLayout();
            LoadData();
            C3DTheme.Apply(this, C3DPalette.Dark);
        }

        private void BuildLayout()
        {
            var split = new SplitContainer { Dock = DockStyle.Fill, Orientation = Orientation.Horizontal, SplitterDistance = 380 };
            Controls.Add(split);

            // ---- Profiles grid ----
            _dgvProfiles = new DataGridView
            {
                Dock = DockStyle.Fill,
                AutoGenerateColumns = false,
                AllowUserToAddRows = false,
                AutoSizeColumnsMode = DataGridViewAutoSizeColumnsMode.Fill
            };
            _dgvProfiles.Columns.Add(new DataGridViewTextBoxColumn { DataPropertyName = "Name", HeaderText = "Name", Name = "Name" });
            _dgvProfiles.Columns.Add(new DataGridViewTextBoxColumn { DataPropertyName = "OffsetLeft", HeaderText = "Offset L", Name = "OffsetLeft" });
            _dgvProfiles.Columns.Add(new DataGridViewTextBoxColumn { DataPropertyName = "OffsetRight", HeaderText = "Offset R", Name = "OffsetRight" });
            _dgvProfiles.Columns.Add(new DataGridViewTextBoxColumn { DataPropertyName = "PipeCount", HeaderText = "Pipes", Name = "PipeCount" });
            _dgvProfiles.Columns.Add(new DataGridViewTextBoxColumn { DataPropertyName = "LayerName", HeaderText = "Layer", Name = "LayerName" });
            _dgvProfiles.Columns.Add(new DataGridViewTextBoxColumn { DataPropertyName = "ColorIndex", HeaderText = "Color", Name = "ColorIndex" });
            _dgvProfiles.Columns.Add(new DataGridViewTextBoxColumn { DataPropertyName = "Linetype", HeaderText = "Linetype", Name = "Linetype" });
            _dgvProfiles.Columns.Add(new DataGridViewTextBoxColumn { DataPropertyName = "Lineweight", HeaderText = "Lineweight", Name = "Lineweight" });

            var profilesPanel = new Panel { Dock = DockStyle.Fill };
            profilesPanel.Controls.Add(_dgvProfiles);
            profilesPanel.Controls.Add(C3DTheme.Role(new Label { Text = "Profiles:", Dock = DockStyle.Top, Height = 20 }, C3DTheme.RoleMuted));
            split.Panel1.Controls.Add(profilesPanel);

            // ---- Group checkbox defaults grid ----
            _dgvGroupOpts = new DataGridView
            {
                Dock = DockStyle.Fill,
                AutoGenerateColumns = false,
                AllowUserToAddRows = false,
                RowHeadersWidth = 130,
                AutoSizeColumnsMode = DataGridViewAutoSizeColumnsMode.Fill
            };
            foreach (var pair in new[]
                     {
                         Tuple.Create("Close", "Close (join polyline)"),
                         Tuple.Create("Center", "Center (centerline poly)"),
                         Tuple.Create("OrigHilf", "Original -> _HILFSLINIEN"),
                         Tuple.Create("DelOrig", "Delete original")
                     })
            {
                var col = new DataGridViewComboBoxColumn
                {
                    Name = pair.Item1,
                    HeaderText = pair.Item2,
                    DataSource = Enum.GetValues(typeof(GroupCheckMode)),
                };
                _dgvGroupOpts.Columns.Add(col);
            }

            var groupPanel = new Panel { Dock = DockStyle.Fill };
            groupPanel.Controls.Add(_dgvGroupOpts);
            groupPanel.Controls.Add(C3DTheme.Role(new Label
            {
                Text = "Group checkbox defaults (Checked = default ON & still editable, " +
                       "Unchecked = default OFF & still editable, Disabled = greyed out / locked OFF):",
                Dock = DockStyle.Top,
                Height = 34
            }, C3DTheme.RoleMuted));
            split.Panel2.Controls.Add(groupPanel);

            // ---- buttons ----
            var buttonPanel = new FlowLayoutPanel { Dock = DockStyle.Bottom, Height = 40, FlowDirection = System.Windows.Forms.FlowDirection.RightToLeft };
            _btnClose = C3DTheme.Role(new Button { Text = "Close", Width = 90 }, C3DTheme.RoleNeutral);
            _btnSave = C3DTheme.Role(new Button { Text = "Save to file", Width = 100 }, C3DTheme.RolePrimary);
            _btnDelete = C3DTheme.Role(new Button { Text = "Delete row", Width = 100 }, C3DTheme.RoleDanger);
            _btnAdd = C3DTheme.Role(new Button { Text = "Add profile", Width = 100 }, C3DTheme.RoleRefresh);
            buttonPanel.Controls.AddRange(new Control[] { _btnClose, _btnSave, _btnDelete, _btnAdd });
            Controls.Add(buttonPanel);

            _btnAdd.Click += (s, e) => AddProfile();
            _btnDelete.Click += (s, e) => DeleteSelectedProfile();
            _btnSave.Click += (s, e) => SaveAll();
            _btnClose.Click += (s, e) => Close();
        }

        private void LoadData()
        {
            _dgvProfiles.DataSource = null;
            _dgvProfiles.DataSource = ProfileStore.Profiles;

            _dgvGroupOpts.Rows.Clear();
            foreach (var group in ProfileGroups.All)
            {
                var row = ProfileStore.RowFor(group);
                int i = _dgvGroupOpts.Rows.Add(row.Close, row.Center, row.OrigHilf, row.DelOrig);
                _dgvGroupOpts.Rows[i].HeaderCell.Value = group;
            }
        }

        private void AddProfile()
        {
            ProfileStore.Profiles.Add(new ProfileEntry("NewProfile", 0.05, 0.05, "0", 1, 7, "Continuous", -3));
            _dgvProfiles.DataSource = null;
            _dgvProfiles.DataSource = ProfileStore.Profiles;
        }

        private void DeleteSelectedProfile()
        {
            if (_dgvProfiles.CurrentRow?.DataBoundItem is ProfileEntry entry)
            {
                ProfileStore.Profiles.Remove(entry);
                _dgvProfiles.DataSource = null;
                _dgvProfiles.DataSource = ProfileStore.Profiles;
            }
        }

        private void SaveAll()
        {
            _dgvProfiles.EndEdit();
            _dgvGroupOpts.EndEdit();

            for (int i = 0; i < ProfileGroups.All.Length; i++)
            {
                string group = ProfileGroups.All[i];
                var row = _dgvGroupOpts.Rows[i];
                var opts = ProfileStore.RowFor(group);
                opts.Close = (GroupCheckMode)row.Cells["Close"].Value;
                opts.Center = (GroupCheckMode)row.Cells["Center"].Value;
                opts.OrigHilf = (GroupCheckMode)row.Cells["OrigHilf"].Value;
                opts.DelOrig = (GroupCheckMode)row.Cells["DelOrig"].Value;
            }

            ProfileStore.Save();
            MessageBox.Show(this, "Saved.", "MultiOffset", MessageBoxButtons.OK, MessageBoxIcon.Information);
        }
    }
}


// ===== FILE: UI\MainForm.cs =====
using System;
using System.Collections.Generic;
using System.Drawing;
using System.Drawing.Drawing2D;
using System.Linq;
using System.Windows.Forms;
using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.EditorInput;
using MultiOffsetBothSidesWithLayerExtra.Geometry;
using MultiOffsetBothSidesWithLayerExtra.Models;
using MultiOffsetBothSidesWithLayerExtra.Services;

namespace MultiOffsetBothSidesWithLayerExtra.UI
{
    /// <summary>
    /// Main tool window. Modeless (Application.ShowModelessDialog), stays
    /// above AutoCAD, no taskbar entry, Escape does not close it. Combines:
    ///   - profile/settings controls (equivalent of the old DCL dialog)
    ///   - a live 2D preview (PreviewControl)
    ///   - a picked-objects grid that highlights the entity in the
    ///     viewport when a row is selected
    ///   - a live log grid (Logger)
    /// </summary>
    public class MainForm : Form
    {
        private readonly List<ObjectId> _pickedIds = new List<ObjectId>();
        private readonly ModelSpacePreviewController _modelPreview = new ModelSpacePreviewController();
        private readonly UserPreferences _preferences;
        private WinFormsDebouncer _previewDebouncer;
        private ErrorProvider _errors;
        private OffsetRunResult _lastApplyResult;
        private bool _suspendPreviewRefresh;

        // ---- controls ----
        private ComboBox _cboGroup, _cboProfile, _cboLayer;
        private NumericUpDown _numPipes, _numExtL, _numExtR;
        private TextBox _txtOffL, _txtOffR;
        private CheckBox _chkEqualExt, _chkUseLayer, _chkPpoClose, _chkPpoCenter, _chkOrigHilf, _chkDelOrig;
        private RadioButton _rbCenter, _rbUp, _rbDown, _rbSchutz;
        private Button _btnPick, _btnManage, _btnRun, _btnUndoLast;
        private Label _lblPickStatus, _lblVersion;
        private PreviewControl _preview;
        private SplitContainer _rightHorizontalSplit, _previewPickedSplit;
        private PickedObjectsPanel _pickedPanel;
        private LogPanel _logPanel;

        public MainForm()
        {
            _preferences = UserPreferences.Load();
            BuildLayout();
            _errors = new ErrorProvider { ContainerControl = this, BlinkStyle = ErrorBlinkStyle.NeverBlink };
            _previewDebouncer = new WinFormsDebouncer(180, RefreshPreviewFromUi);
            WireEvents();
            LoadProfilesIntoUi();
            ApplyUserPreferences();
            C3DTheme.Apply(this, C3DPalette.Dark);
            FormClosing += (s, e) => SaveUserPreferences();
            FormClosed += (s, e) =>
            {
                _previewDebouncer?.Dispose();
                _modelPreview.Dispose();
            };
        }

        // ==================================================================
        // Layout (hand-built — no designer file, easier to keep in sync
        // with a text-only delivery like this one).
        // ==================================================================
        private void BuildLayout()
        {
            Text = "Multiple entities offset both sides — assign layer";
            FormBorderStyle = FormBorderStyle.SizableToolWindow;
            ShowInTaskbar = false;
            TopMost = true;
            StartPosition = FormStartPosition.CenterParent;
            MinimumSize = new Size(1120, 720);
            Size = new Size(1260, 820);
            KeyPreview = true;

            var outer = new TableLayoutPanel { Dock = DockStyle.Fill, ColumnCount = 1, RowCount = 2 };
            outer.RowStyles.Add(new RowStyle(SizeType.Absolute, 56));
            outer.RowStyles.Add(new RowStyle(SizeType.Percent, 100));
            Controls.Add(outer);

            var header = C3DTheme.Role(new Panel { Dock = DockStyle.Fill, Padding = new Padding(12, 7, 12, 6) }, C3DTheme.RoleHeader);
            var title = C3DTheme.Role(new Label
            {
                Text = "MultiOffset · Schutzrohr / parallel offsets",
                Dock = DockStyle.Top,
                Height = 22
            }, C3DTheme.RoleHeaderTitle);
            var subtitle = C3DTheme.Role(new Label
            {
                Text = "Modeless Civil 3D tool · pick in model space, preview selected curves + computed offsets, apply with logging",
                Dock = DockStyle.Top,
                Height = 18
            }, C3DTheme.RoleHeaderPath);
            header.Controls.Add(subtitle);
            header.Controls.Add(title);
            outer.Controls.Add(header, 0, 0);

            var root = new TableLayoutPanel { Dock = DockStyle.Fill, ColumnCount = 2, RowCount = 1, Padding = new Padding(8) };
            root.ColumnStyles.Add(new ColumnStyle(SizeType.Absolute, 460));
            root.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 100));
            outer.Controls.Add(root, 0, 1);

            root.Controls.Add(BuildSettingsPanel(), 0, 0);
            root.Controls.Add(BuildRightPanel(), 1, 0);

            C3DTheme.Apply(this, C3DPalette.Dark);
        }

        private Control BuildSettingsPanel()
        {
            var outer = new Panel { Dock = DockStyle.Fill, Padding = new Padding(0) };

            // Keep Apply/Undo pinned at the bottom.  The options area can scroll,
            // but the action buttons are always reachable and no longer compete
            // vertically with the profile controls.
            var commandPanel = new TableLayoutPanel
            {
                Dock = DockStyle.Bottom,
                Height = 88,
                ColumnCount = 2,
                RowCount = 2,
                Padding = new Padding(8, 8, 8, 8)
            };
            commandPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50));
            commandPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50));
            commandPanel.RowStyles.Add(new RowStyle(SizeType.Absolute, 42));
            commandPanel.RowStyles.Add(new RowStyle(SizeType.Absolute, 22));

            _btnRun = C3DTheme.Role(new Button
            {
                Text = "Apply",
                Dock = DockStyle.Fill,
                Margin = new Padding(0, 0, 6, 0),
                Font = new System.Drawing.Font(Font.FontFamily, Font.Size + 1.0f, FontStyle.Bold)
            }, C3DTheme.RolePrimary);
            _btnUndoLast = C3DTheme.Role(new Button
            {
                Text = "Undo last",
                Dock = DockStyle.Fill,
                Margin = new Padding(6, 0, 0, 0),
                Enabled = false
            }, C3DTheme.RoleDanger);
            _lblVersion = C3DTheme.Role(new Label
            {
                Text = "v" + VersionInfo.GetBanner(),
                Dock = DockStyle.Fill,
                TextAlign = ContentAlignment.MiddleLeft,
                ForeColor = Color.Gray
            }, C3DTheme.RoleMuted);

            commandPanel.Controls.Add(_btnRun, 0, 0);
            commandPanel.Controls.Add(_btnUndoLast, 1, 0);
            commandPanel.Controls.Add(_lblVersion, 0, 1);
            commandPanel.SetColumnSpan(_lblVersion, 2);

            var body = new FlowLayoutPanel
            {
                Dock = DockStyle.Fill,
                AutoScroll = true,
                FlowDirection = System.Windows.Forms.FlowDirection.TopDown,
                WrapContents = false,
                Padding = new Padding(8, 8, 8, 8)
            };
            body.SizeChanged += (s, e) =>
            {
                int w = Math.Max(360, body.ClientSize.Width - body.Padding.Horizontal - 8);
                foreach (Control c in body.Controls)
                    c.Width = w;
            };

            var grpMode = new GroupBox { Text = "Starting point represents", Height = 172, Margin = new Padding(0, 0, 0, 12) };
            _rbCenter = new RadioButton { Text = "Centerline", Left = 12, Top = 24, Width = 220, Checked = true };
            _rbUp = new RadioButton { Text = "Offset Up (Left)", Left = 12, Top = 50, Width = 220 };
            _rbDown = new RadioButton { Text = "Offset Down (Right)", Left = 12, Top = 76, Width = 220 };
            _rbSchutz = new RadioButton { Text = "Schutzrohr exterior", Left = 12, Top = 102, Width = 240 };
            _btnPick = C3DTheme.Role(new Button { Text = "Pick objects (auto-detect)", Left = 12, Top = 130, Width = 240, Height = 28 }, C3DTheme.RoleRefresh);
            _lblPickStatus = C3DTheme.Role(new Label { Text = "No objects picked yet.", Left = 12, Top = 156, Width = 390, Height = 18 }, C3DTheme.RoleMuted);
            grpMode.Controls.AddRange(new Control[] { _rbCenter, _rbUp, _rbDown, _rbSchutz, _btnPick, _lblPickStatus });

            var grpProfile = new GroupBox { Text = "Profile / offsets", Height = 278, Margin = new Padding(0, 0, 0, 12) };
            grpProfile.Controls.Add(new Label { Text = "Group:", Left = 12, Top = 28, Width = 62 });
            _cboGroup = new ComboBox { Left = 82, Top = 24, Width = 165, DropDownStyle = ComboBoxStyle.DropDownList };
            grpProfile.Controls.Add(new Label { Text = "Profile:", Left = 12, Top = 60, Width = 62 });
            _cboProfile = new ComboBox { Left = 82, Top = 56, Width = 330, DropDownStyle = ComboBoxStyle.DropDownList };
            _btnManage = C3DTheme.Role(new Button { Text = "Manage...", Left = 12, Top = 92, Width = 96, Height = 26 }, C3DTheme.RoleNeutral);

            grpProfile.Controls.Add(new Label { Text = "Pipes:", Left = 122, Top = 98, Width = 48 });
            _numPipes = new NumericUpDown { Left = 172, Top = 94, Width = 64, Minimum = 1, Maximum = 99, Value = 1 };

            grpProfile.Controls.Add(new Label { Text = "Offset L:", Left = 12, Top = 132, Width = 62 });
            _txtOffL = new TextBox { Left = 82, Top = 128, Width = 78, Text = "0.055" };
            grpProfile.Controls.Add(new Label { Text = "Offset R:", Left = 174, Top = 132, Width = 62 });
            _txtOffR = new TextBox { Left = 244, Top = 128, Width = 78, Text = "0.055" };

            grpProfile.Controls.Add(new Label { Text = "Extra L:", Left = 12, Top = 166, Width = 58 });
            _numExtL = new NumericUpDown { Left = 74, Top = 162, Width = 58, Minimum = 0, Maximum = 20 };
            grpProfile.Controls.Add(new Label { Text = "Extra R:", Left = 144, Top = 166, Width = 58 });
            _numExtR = new NumericUpDown { Left = 206, Top = 162, Width = 58, Minimum = 0, Maximum = 20 };
            _chkEqualExt = new CheckBox { Text = "Equal L = R", Left = 278, Top = 164, Width = 120, Checked = true };

            _chkUseLayer = new CheckBox { Text = "Place on layer:", Left = 12, Top = 200, Width = 118, Checked = true };
            _cboLayer = new ComboBox { Left = 138, Top = 196, Width = 274, DropDownStyle = ComboBoxStyle.DropDownList };

            _chkPpoClose = new CheckBox { Text = "Close into single polyline", Left = 12, Top = 232, Width = 240 };
            _chkPpoCenter = new CheckBox { Text = "Create centerline polyline", Left = 12, Top = 254, Width = 250 };

            grpProfile.Controls.AddRange(new Control[]
            {
                _cboGroup, _cboProfile, _btnManage, _numPipes, _txtOffL, _txtOffR,
                _numExtL, _numExtR, _chkEqualExt, _chkUseLayer, _cboLayer, _chkPpoClose, _chkPpoCenter
            });

            var grpOther = new GroupBox { Text = "Other options", Height = 92, Margin = new Padding(0, 0, 0, 12) };
            _chkOrigHilf = new CheckBox { Text = "Original object on _HILFSLINIEN", Left = 12, Top = 28, Width = 300 };
            _chkDelOrig = new CheckBox { Text = "Delete original object", Left = 12, Top = 56, Width = 260 };
            grpOther.Controls.AddRange(new Control[] { _chkOrigHilf, _chkDelOrig });

            body.Controls.Add(grpMode);
            body.Controls.Add(grpProfile);
            body.Controls.Add(grpOther);

            outer.Controls.Add(body);
            outer.Controls.Add(commandPanel);
            return outer;
        }

        private Control BuildRightPanel()
        {
            _rightHorizontalSplit = new SplitContainer { Dock = DockStyle.Fill, Orientation = Orientation.Horizontal, SplitterDistance = 380 };

            _previewPickedSplit = new SplitContainer { Dock = DockStyle.Fill, Orientation = Orientation.Vertical, SplitterDistance = 640 };
            _preview = new PreviewControl { Dock = DockStyle.Fill };
            _previewPickedSplit.Panel1.Controls.Add(_preview);

            _pickedPanel = new PickedObjectsPanel { Dock = DockStyle.Fill };
            _previewPickedSplit.Panel2.Controls.Add(_pickedPanel);

            _rightHorizontalSplit.Panel1.Controls.Add(_previewPickedSplit);

            _logPanel = new LogPanel { Dock = DockStyle.Fill };
            _rightHorizontalSplit.Panel2.Controls.Add(_logPanel);

            return _rightHorizontalSplit;
        }

        // ==================================================================
        // Events
        // ==================================================================
        private void WireEvents()
        {
            _cboGroup.SelectedIndexChanged += (s, e) => RefreshProfileList();
            _cboProfile.SelectedIndexChanged += (s, e) => OnProfileChanged();
            _chkEqualExt.CheckedChanged += (s, e) =>
            {
                if (_chkEqualExt.Checked) _numExtR.Value = _numExtL.Value;
                RequestPreviewRefresh();
            };
            _numExtL.ValueChanged += (s, e) => { if (_chkEqualExt.Checked) _numExtR.Value = _numExtL.Value; RequestPreviewRefresh(); };
            _numExtR.ValueChanged += (s, e) => RequestPreviewRefresh();
            _numPipes.ValueChanged += (s, e) => RequestPreviewRefresh();
            _txtOffL.TextChanged += (s, e) => { ValidateDistanceFields(false); RequestPreviewRefresh(); };
            _txtOffR.TextChanged += (s, e) => { ValidateDistanceFields(false); RequestPreviewRefresh(); };
            _rbCenter.CheckedChanged += (s, e) => RequestPreviewRefresh();
            _rbUp.CheckedChanged += (s, e) => RequestPreviewRefresh();
            _rbDown.CheckedChanged += (s, e) => RequestPreviewRefresh();
            _rbSchutz.CheckedChanged += (s, e) => RequestPreviewRefresh();
            _chkPpoCenter.CheckedChanged += (s, e) => RequestPreviewRefresh();
            _chkPpoClose.CheckedChanged += (s, e) => RequestPreviewRefresh();
            _chkUseLayer.CheckedChanged += (s, e) => { _cboLayer.Enabled = _chkUseLayer.Checked; RequestPreviewRefresh(); };

            _btnPick.Click += (s, e) => PickObjects();
            _btnManage.Click += (s, e) => OpenManageProfiles();
            _btnRun.Click += (s, e) => RunOffset();
            _btnUndoLast.Click += (s, e) => UndoLastApply();

            _pickedPanel.SelectionChanged += (s, e) => HighlightSelectedPicks();
        }

        /// <summary>Escape must not close a modeless tool window while picking in the viewport.</summary>
        protected override bool ProcessCmdKey(ref Message msg, Keys keyData)
        {
            const int WM_KEYDOWN = 0x0100;
            if (msg.Msg == WM_KEYDOWN && keyData == Keys.Escape)
                return true; // swallow it
            return base.ProcessCmdKey(ref msg, keyData);
        }

        // ==================================================================
        // Profile list wiring
        // ==================================================================
        private void LoadProfilesIntoUi()
        {
            _cboGroup.Items.Clear();
            _cboGroup.Items.Add("All types");
            _cboGroup.Items.AddRange(ProfileGroups.All);
            _cboGroup.SelectedIndex = 0;
            RefreshProfileList();
        }

        private void RefreshProfileList()
        {
            string group = _cboGroup.SelectedItem as string;
            _cboProfile.Items.Clear();

            IEnumerable<ProfileEntry> list = ProfileStore.Profiles;
            if (group != null && group != "All types")
                list = list.Where(p => p.GroupKey == group);

            foreach (var p in list)
                _cboProfile.Items.Add(p);

            if (_cboProfile.Items.Count > 0)
                _cboProfile.SelectedIndex = 0;
        }

        private void OnProfileChanged()
        {
            var profile = _cboProfile.SelectedItem as ProfileEntry;
            if (profile == null) return;

            _numPipes.Value = Math.Max(1, Math.Min(_numPipes.Maximum, profile.PipeCount));
            _txtOffL.Text = profile.OffsetLeft.ToString("0.####");
            _txtOffR.Text = profile.OffsetRight.ToString("0.####");

            if (_chkUseLayer.Checked && !_cboLayer.Items.Contains(profile.LayerName))
                _cboLayer.Items.Add(profile.LayerName);
            _cboLayer.SelectedItem = profile.LayerName;

            ApplyGroupCheckboxDefaults(profile.GroupKey);
            ApplyStartModeDefault(profile);
            RequestPreviewRefresh();
        }

        /// <summary>Port of OL-ApplyGroupCheckboxDefaults: apply Checked/Unchecked/Disabled
        /// per the group's configured mode for all 4 checkboxes.</summary>
        private void ApplyGroupCheckboxDefaults(string groupKey)
        {
            var row = ProfileStore.RowFor(groupKey);
            Apply(_chkPpoClose, row.Close);
            Apply(_chkPpoCenter, row.Center);
            Apply(_chkOrigHilf, row.OrigHilf);
            Apply(_chkDelOrig, row.DelOrig);

            void Apply(CheckBox box, GroupCheckMode mode)
            {
                box.Checked = mode == GroupCheckMode.Checked;
                box.Enabled = mode != GroupCheckMode.Disabled;
            }
        }

        private void ApplyStartModeDefault(ProfileEntry profile)
        {
            _rbSchutz.Enabled = true; // always selectable; only the auto-default changes
            if (profile.IsSchutzrohr)
                _rbSchutz.Checked = true;
            else if (_rbSchutz.Checked)
                _rbCenter.Checked = true;
        }

        // ==================================================================
        // Picking + preview + viewport highlight
        // ==================================================================
        private void PickObjects()
        {
            var doc = AcadDocumentService.ActiveDocument;
            if (doc == null) return;

            var ed = doc.Editor;
            var filter = new SelectionFilter(new[]
            {
                new TypedValue((int)DxfCode.Start, "LINE,LWPOLYLINE,POLYLINE,SPLINE,ARC")
            });

            // Same model-space interaction pattern as ParallelPipesNet: get the
            // tool window out of the way before AutoCAD prompts for selection,
            // then restore it in finally so cancel/Escape never leaves it hidden.
            PromptSelectionResult res = AcadDocumentService.GetSelectionWithHiddenOwner(this, filter);

            if (res == null || res.Status != PromptStatus.OK)
            {
                Logger.Info("PickObjects", "Selection cancelled or empty.");
                return;
            }

            _pickedIds.Clear();
            _pickedIds.AddRange(res.Value.GetObjectIds());
            Logger.Info("PickObjects", $"{_pickedIds.Count} object(s) picked.");

            using (doc.LockDocument())
            {
                RefreshPickedGrid(doc);
                _suspendPreviewRefresh = true;
                try { UpdateStartModeFromPickedGeometry(doc); }
                finally { _suspendPreviewRefresh = false; }
                RefreshPreview(doc);
            }
        }

        private void RefreshPickedGrid(Document doc)
        {
            _pickedPanel.RefreshRows(doc, _pickedIds);
        }

        private void RefreshPreview(Document doc, bool updateModelSpacePreview = true)
        {
            _preview.ClearGeometry();
            _modelPreview.Clear(doc);
            bool drawModelSpacePreview = updateModelSpacePreview && _pickedIds.Count > 0;

            var profile = _cboProfile.SelectedItem as ProfileEntry;
            RunSettings settings = null;
            if (profile != null)
                TryBuildSettings(profile, false, out settings);

            using (var tr = doc.Database.TransactionManager.StartTransaction())
            {
                foreach (var id in _pickedIds)
                {
                    if (!id.IsValid || id.IsErased) continue;

                    var sourcePts = GeometryUtils.SamplePoints(tr, id);
                    _preview.AddPolyline(sourcePts, Color.FromArgb(0, 190, 255), 1.4f, DashStyle.Dash);

                    if (settings != null)
                        AddComputedOffsetPreview(tr, id, settings, drawModelSpacePreview);
                }
                tr.Commit();
            }

            if (drawModelSpacePreview)
            {
                try { doc.Editor.UpdateScreen(); } catch { }
            }
        }

        private void AddComputedOffsetPreview(Transaction tr, ObjectId sourceId, RunSettings s, bool drawModelSpacePreview)
        {
            if (!(tr.GetObject(sourceId, OpenMode.ForRead) is Curve)) return;

            OffsetPlan plan;
            try { plan = OffsetPlan.FromSettings(s); }
            catch { return; }

            foreach (var planned in plan.AllOffsets)
            {
                // The selected curve is already shown as a dashed reference line; avoid
                // painting a coincident solid line over it for zero-distance cases.
                if (Math.Abs(planned.Distance) < OffsetPlan.ZeroTolerance) continue;
                AddOffsetCurvePreview(tr, sourceId, planned.Distance, Color.FromArgb(255, 80, 80), 1.5f, DashStyle.Solid, drawModelSpacePreview);
            }

            bool schutz = s.Profile?.IsSchutzrohr ?? false;
            if (schutz && s.PpoCenter && s.Profile?.SchutzrohrDiameter != null)
            {
                double diameter = s.Profile.SchutzrohrDiameter.Value;
                foreach (double off in plan.SchutzrohrPipeCenterlineDistances(diameter))
                {
                    if (Math.Abs(off) < OffsetPlan.ZeroTolerance) continue;
                    AddOffsetCurvePreview(tr, sourceId, off, Color.FromArgb(0, 255, 255), 1.2f, DashStyle.Dot, drawModelSpacePreview);
                }
            }
        }

        private void AddOffsetCurvePreview(Transaction tr, ObjectId sourceId, double distance, Color color, float width, DashStyle dash, bool drawModelSpacePreview)
        {
            DBObjectCollection offsetCurves = null;
            try
            {
                var curve = (Curve)tr.GetObject(sourceId, OpenMode.ForRead);
                offsetCurves = curve.GetOffsetCurves(distance);
                foreach (DBObject dbo in offsetCurves)
                {
                    bool retainedByModelPreview = false;
                    try
                    {
                        if (dbo is Curve c)
                        {
                            var pts = GeometryUtils.SampleCurve(c);
                            _preview.AddPolyline(pts, color, width, dash);
                            if (drawModelSpacePreview && dbo is Entity ent)
                                retainedByModelPreview = _modelPreview.Add(ent, color);
                        }
                    }
                    finally
                    {
                        if (!retainedByModelPreview)
                            dbo.Dispose();
                    }
                }
            }
            catch
            {
                // Preview must remain best-effort; the actual run still logs exact
                // GetOffsetCurves failures from OffsetEngine.OffsetOrReuse.
            }
        }

        /// <summary>Port of the LISP "Pick objects (auto-detect)" logic: if every picked
        /// entity is straight-only, default to Centerline; if any has an arc/spline,
        /// default to Schutzrohr exterior. Only applies for a Schutzrohr profile.</summary>
        private void UpdateStartModeFromPickedGeometry(Document doc)
        {
            var profile = _cboProfile.SelectedItem as ProfileEntry;
            bool allStraight = true;

            using (var tr = doc.Database.TransactionManager.StartTransaction())
            {
                foreach (var id in _pickedIds)
                {
                    if (!GeometryUtils.IsStraightGeometry(tr, id))
                    {
                        allStraight = false;
                        break;
                    }
                }
                tr.Commit();
            }

            _lblPickStatus.Text = _pickedIds.Count == 0
                ? "No objects picked yet."
                : $"{_pickedIds.Count} object(s) picked — {(allStraight ? "all straight" : "contains arc/spline")}";

            if (profile != null && profile.IsSchutzrohr)
                (allStraight ? (RadioButton)_rbCenter : _rbSchutz).Checked = true;
        }

        private void HighlightSelectedPicks()
        {
            var doc = AcadDocumentService.ActiveDocument;
            if (doc == null) return;

            var ids = new List<ObjectId>();
            foreach (int idx in _pickedPanel.SelectedIndexes())
            {
                if (idx >= 0 && idx < _pickedIds.Count)
                    ids.Add(_pickedIds[idx]);
            }
            if (ids.Count == 0) return;

            using (doc.LockDocument())
            {
                doc.Editor.SetImpliedSelection(ids.ToArray());
                doc.Editor.UpdateScreen();
            }
        }

        private void RequestPreviewRefresh()
        {
            if (_suspendPreviewRefresh || _pickedIds.Count == 0 || _preview == null) return;
            _previewDebouncer?.Request();
        }

        private void RefreshPreviewFromUi()
        {
            if (_suspendPreviewRefresh || _pickedIds.Count == 0 || _preview == null || IsDisposed) return;
            var doc = AcadDocumentService.ActiveDocument;
            if (doc == null) return;
            try
            {
                using (doc.LockDocument())
                    RefreshPreview(doc);
            }
            catch
            {
                // Preview is best-effort while fields are being edited and while
                // AutoCAD is busy with another command.
            }
        }

        // ==================================================================
        // Run
        // ==================================================================
        private bool TryBuildSettings(ProfileEntry profile, bool showMessage, out RunSettings settings)
        {
            settings = null;
            if (profile == null) return false;

            bool okL = InputValidator.TryParsePositiveDistance(_txtOffL.Text, "Offset L", out double offsetL, out string errL);
            bool okR = InputValidator.TryParsePositiveDistance(_txtOffR.Text, "Offset R", out double offsetR, out string errR);
            if (_errors != null)
            {
                _errors.SetError(_txtOffL, okL ? string.Empty : errL);
                _errors.SetError(_txtOffR, okR ? string.Empty : errR);
            }

            if (!okL || !okR)
            {
                if (showMessage)
                    MessageBox.Show(this, string.Join(Environment.NewLine, new[] { errL, errR }.Where(x => !string.IsNullOrEmpty(x))),
                        "MultiOffset — invalid offsets", MessageBoxButtons.OK, MessageBoxIcon.Warning);
                return false;
            }

            string targetLayer = _cboLayer.SelectedItem as string;
            if (string.IsNullOrEmpty(targetLayer))
                targetLayer = profile.LayerName;

            settings = new RunSettings
            {
                SelectMode = SelectMode.SelectCenterlines,
                StartMode = _rbCenter.Checked ? StartMode.Centerline
                          : _rbUp.Checked ? StartMode.OffsetUp
                          : _rbDown.Checked ? StartMode.OffsetDown
                          : StartMode.SchutzrohrExterior,
                Profile = profile,
                PipeCount = (int)_numPipes.Value,
                OffsetLeft = offsetL,
                OffsetRight = offsetR,
                ExtraLeft = (int)_numExtL.Value,
                ExtraRight = (int)_numExtR.Value,
                EqualExtraCounts = _chkEqualExt.Checked,
                DeleteOriginal = _chkDelOrig.Checked,
                UseTargetLayer = _chkUseLayer.Checked,
                TargetLayer = targetLayer,
                PpoClose = _chkPpoClose.Checked,
                PpoCenter = _chkPpoCenter.Checked,
                OrigOnHilf = _chkOrigHilf.Checked,
            };
            return true;
        }

        private void ValidateDistanceFields(bool showMessage)
        {
            var profile = _cboProfile?.SelectedItem as ProfileEntry;
            if (profile == null) return;
            TryBuildSettings(profile, showMessage, out _);
        }

        private void RunOffset()
        {
            var profile = _cboProfile.SelectedItem as ProfileEntry;
            if (profile == null)
            {
                MessageBox.Show(this, "Select a profile first.", "MultiOffset", MessageBoxButtons.OK, MessageBoxIcon.Warning);
                return;
            }
            if (_pickedIds.Count == 0)
            {
                MessageBox.Show(this, "Pick at least one object first.", "MultiOffset", MessageBoxButtons.OK, MessageBoxIcon.Warning);
                return;
            }

            if (!TryBuildSettings(profile, true, out RunSettings settings))
                return;

            _previewDebouncer?.Flush();

            var doc = AcadDocumentService.ActiveDocument;
            if (doc == null) return;

            using (doc.LockDocument())
            {
                try
                {
                    _modelPreview.Clear(doc);
                    Logger.Info("Apply", $"Starting apply: profile={profile.Name} pipes={settings.PipeCount} " +
                                          $"startMode={settings.StartMode} objects={_pickedIds.Count}");
                    var engine = new OffsetEngine(doc.Database);
                    _lastApplyResult = engine.RunSelectCenterlines(settings, _pickedIds);
                    _btnUndoLast.Enabled = _lastApplyResult != null &&
                                           (_lastApplyResult.CreatedIds.Count > 0 || _lastApplyResult.OriginalLayers.Count > 0);
                    Logger.Info("Apply", $"Apply completed. Created {_lastApplyResult?.CreatedIds.Count ?? 0} entity(s).");
                }
                catch (Exception ex)
                {
                    Logger.Error("Apply", "Apply failed: " + ex.Message);
                    MessageBox.Show(this, ex.Message, "MultiOffset — error", MessageBoxButtons.OK, MessageBoxIcon.Error);
                }
            }

            using (doc.LockDocument())
                RefreshPreview(doc, false);
        }


        private void UndoLastApply()
        {
            var doc = AcadDocumentService.ActiveDocument;
            if (doc == null) return;

            if (_lastApplyResult == null)
            {
                Logger.Info("Undo", "Nothing to undo.");
                _btnUndoLast.Enabled = false;
                return;
            }

            int erasedCreated = 0;
            int restoredSources = 0;
            _modelPreview.Clear(doc);

            using (doc.LockDocument())
            {
                using (var tr = doc.Database.TransactionManager.StartTransaction())
                {
                    foreach (var id in _lastApplyResult.CreatedIds)
                    {
                        try
                        {
                            if (id.IsNull || !id.IsValid) continue;
                            var ent = tr.GetObject(id, OpenMode.ForWrite) as Entity;
                            if (ent == null || ent.IsErased) continue;
                            ent.Erase();
                            erasedCreated++;
                        }
                        catch
                        {
                            // Already erased, deleted by user, or inaccessible: ignore.
                        }
                    }

                    foreach (var kv in _lastApplyResult.OriginalLayers)
                    {
                        try
                        {
                            ObjectId id = kv.Key;
                            if (id.IsNull || !id.IsValid) continue;

                            var ent = tr.GetObject(id, OpenMode.ForWrite, true) as Entity;
                            if (ent == null) continue;

                            if (ent.IsErased)
                                ent.Erase(false);

                            if (!string.IsNullOrEmpty(kv.Value))
                                ent.Layer = kv.Value;

                            restoredSources++;
                        }
                        catch (Exception ex)
                        {
                            Logger.Warn("Undo", $"Could not restore source object {kv.Key}: {ex.Message}");
                        }
                    }

                    tr.Commit();
                }

                RefreshPickedGrid(doc);
                RefreshPreview(doc, true);
            }

            Logger.Info("Undo", $"Undo last Apply: erased {erasedCreated} created entity(s), restored {restoredSources} source object(s).");
            _lastApplyResult = null;
            _btnUndoLast.Enabled = false;
        }

        private void OpenManageProfiles()
        {
            using (var f = new ManageProfilesForm())
            {
                f.ShowDialog(this);
                LoadProfilesIntoUi();
                ApplyUserPreferences();
            }
        }

        private void ApplyUserPreferences()
        {
            if (_preferences == null) return;

            _suspendPreviewRefresh = true;
            try
            {
                if (_preferences.WindowWidth >= MinimumSize.Width && _preferences.WindowHeight >= MinimumSize.Height)
                    Size = new Size(_preferences.WindowWidth, _preferences.WindowHeight);

                if (_preferences.WindowLeft != int.MinValue && _preferences.WindowTop != int.MinValue)
                {
                    var proposed = new Rectangle(_preferences.WindowLeft, _preferences.WindowTop, Math.Max(100, Width), Math.Max(100, Height));
                    foreach (var screen in Screen.AllScreens)
                    {
                        if (screen.WorkingArea.IntersectsWith(proposed))
                        {
                            StartPosition = FormStartPosition.Manual;
                            Location = new Point(_preferences.WindowLeft, _preferences.WindowTop);
                            break;
                        }
                    }
                }

                SelectComboText(_cboGroup, _preferences.SelectedGroup);
                SelectProfileByName(_preferences.SelectedProfile);

                if (!string.IsNullOrEmpty(_preferences.TargetLayer))
                {
                    if (!_cboLayer.Items.Contains(_preferences.TargetLayer))
                        _cboLayer.Items.Add(_preferences.TargetLayer);
                    _cboLayer.SelectedItem = _preferences.TargetLayer;
                }

                TrySetSplitter(_rightHorizontalSplit, _preferences.RightHorizontalSplitDistance);
                TrySetSplitter(_previewPickedSplit, _preferences.PreviewPickedSplitDistance);

                if (_preview != null && _preferences.PreviewZoom > 0.0f)
                    _preview.ZoomFactor = _preferences.PreviewZoom;
            }
            finally
            {
                _suspendPreviewRefresh = false;
            }
        }

        private void SaveUserPreferences()
        {
            if (_preferences == null) return;

            Rectangle bounds = WindowState == FormWindowState.Normal ? Bounds : RestoreBounds;
            _preferences.WindowWidth = Math.Max(MinimumSize.Width, bounds.Width);
            _preferences.WindowHeight = Math.Max(MinimumSize.Height, bounds.Height);
            _preferences.WindowLeft = bounds.Left;
            _preferences.WindowTop = bounds.Top;
            _preferences.SelectedGroup = _cboGroup.SelectedItem as string;
            _preferences.SelectedProfile = (_cboProfile.SelectedItem as ProfileEntry)?.Name;
            _preferences.TargetLayer = _cboLayer.SelectedItem as string;
            _preferences.PreviewZoom = _preview?.ZoomFactor ?? 1.0f;

            if (_rightHorizontalSplit != null)
                _preferences.RightHorizontalSplitDistance = _rightHorizontalSplit.SplitterDistance;
            if (_previewPickedSplit != null)
                _preferences.PreviewPickedSplitDistance = _previewPickedSplit.SplitterDistance;

            _preferences.Save();
        }

        private static void SelectComboText(ComboBox combo, string text)
        {
            if (combo == null || string.IsNullOrEmpty(text)) return;
            for (int i = 0; i < combo.Items.Count; i++)
            {
                if (string.Equals(combo.Items[i]?.ToString(), text, StringComparison.OrdinalIgnoreCase))
                {
                    combo.SelectedIndex = i;
                    return;
                }
            }
        }

        private void SelectProfileByName(string profileName)
        {
            if (_cboProfile == null || string.IsNullOrEmpty(profileName)) return;
            for (int i = 0; i < _cboProfile.Items.Count; i++)
            {
                if (_cboProfile.Items[i] is ProfileEntry profile &&
                    string.Equals(profile.Name, profileName, StringComparison.OrdinalIgnoreCase))
                {
                    _cboProfile.SelectedIndex = i;
                    return;
                }
            }
        }

        private static void TrySetSplitter(SplitContainer split, int distance)
        {
            if (split == null || distance <= 0) return;
            try
            {
                int min = split.Panel1MinSize;
                int max = (split.Orientation == Orientation.Horizontal ? split.Height : split.Width) - split.Panel2MinSize - split.SplitterWidth;
                if (max <= min) return;
                split.SplitterDistance = Math.Max(min, Math.Min(max, distance));
            }
            catch
            {
                // Ignore persisted splitter values that no longer fit the screen.
            }
        }

    }
}


// ===== FILE: UI\C3DTheme.cs =====
using System;
using System.Drawing;
using System.Windows.Forms;

namespace MultiOffsetBothSidesWithLayerExtra.UI
{
    /// <summary>
    /// Civil 3D style WinForms theme ported from ParallelPipesNet_001.
    /// Controls can opt into semantic roles through Control.Tag, e.g.
    /// C3DTheme.Role(button, C3DTheme.RolePrimary).
    /// </summary>
    public class C3DPalette
    {
        public Color Bg, Panel, Border, HeaderBg, Bg2, Bg3, Fg, Muted, Accent, TextW,
                     SelBg, SelFg, CodeBg, CodeFg, Entry, Blue, Green, Red, Orange, Purple, Grey, Reload;

        public static C3DPalette Dark { get; } = new C3DPalette
        {
            Bg = FromHex("#2b2d3e"),
            Panel = FromHex("#23253a"),
            Border = FromHex("#3e4060"),
            HeaderBg = FromHex("#1e2030"),
            Bg2 = FromHex("#23253a"),
            Bg3 = FromHex("#1e2030"),
            Fg = FromHex("#dde1f0"),
            Muted = FromHex("#7a7f9a"),
            Accent = FromHex("#2979d4"),
            TextW = FromHex("#ffffff"),
            SelBg = FromHex("#3a5fa0"),
            SelFg = FromHex("#ffffff"),
            CodeBg = FromHex("#1e2030"),
            CodeFg = FromHex("#dde1f0"),
            Entry = FromHex("#1e2030"),
            Blue = FromHex("#2979d4"),
            Green = FromHex("#2a9e52"),
            Red = FromHex("#c0392b"),
            Orange = FromHex("#e06c2a"),
            Purple = FromHex("#7c4dbd"),
            Grey = FromHex("#3e4060"),
            Reload = FromHex("#4a5070"),
        };

        public static C3DPalette Light { get; } = new C3DPalette
        {
            Bg = FromHex("#ffffff"),
            Panel = FromHex("#f6f8fa"),
            Border = FromHex("#d0d7de"),
            HeaderBg = FromHex("#f6f8fa"),
            Bg2 = FromHex("#f6f8fa"),
            Bg3 = FromHex("#eaeef2"),
            Fg = FromHex("#1f2328"),
            Muted = FromHex("#57606a"),
            Accent = FromHex("#0969da"),
            TextW = FromHex("#ffffff"),
            SelBg = FromHex("#0969da"),
            SelFg = FromHex("#ffffff"),
            CodeBg = FromHex("#f6f8fa"),
            CodeFg = FromHex("#1f2328"),
            Entry = FromHex("#ffffff"),
            Blue = FromHex("#0969da"),
            Green = FromHex("#2a9e52"),
            Red = FromHex("#c0392b"),
            Orange = FromHex("#e06c2a"),
            Purple = FromHex("#7c4dbd"),
            Grey = FromHex("#d0d7de"),
            Reload = FromHex("#afb8c1"),
        };

        private static Color FromHex(string hex) => ColorTranslator.FromHtml(hex);
    }

    public static class C3DFonts
    {
        public static readonly Font Normal = new Font("Segoe UI", 9f);
        public static readonly Font Small = new Font("Segoe UI", 8f);
        public static readonly Font Title = new Font("Segoe UI", 10f, FontStyle.Bold);
        public static readonly Font Button = new Font("Segoe UI", 9f);
        public static readonly Font ButtonBold = new Font("Segoe UI", 9f, FontStyle.Bold);
        public static readonly Font Code = new Font("Consolas", 9.5f);
    }

    public static class C3DTheme
    {
        public const string RoleHeader = "header";
        public const string RoleHeaderTitle = "header_title";
        public const string RoleHeaderPath = "header_path";
        public const string RoleMuted = "muted";
        public const string RolePrimary = "primary";
        public const string RoleRefresh = "refresh";
        public const string RoleDanger = "danger";
        public const string RoleWarn = "warn";
        public const string RoleNeutral = "neutral";

        public static Color Lighten(Color c, int amount = 22)
        {
            int r = Math.Min(255, c.R + amount);
            int g = Math.Min(255, c.G + amount);
            int b = Math.Min(255, c.B + amount);
            return Color.FromArgb(c.A, r, g, b);
        }

        public static T Role<T>(T control, string roleName) where T : Control
        {
            control.Tag = roleName;
            return control;
        }

        public static string GetRole(Control c) => c.Tag as string ?? string.Empty;

        public static void Apply(Control root, C3DPalette C)
        {
            if (root == null) return;
            string roleName = GetRole(root);

            try
            {
                if (root is PreviewControl)
                {
                    // The preview owns its own black model-space-like canvas.
                }
                else if (root is Button btn)
                {
                    StyleButton(btn, roleName, C);
                }
                else if (root is CheckBox cb)
                {
                    cb.BackColor = C.Panel;
                    cb.ForeColor = cb.Enabled ? C.Fg : C.Muted;
                    cb.Font = C3DFonts.Normal;
                    cb.FlatStyle = FlatStyle.Flat;
                }
                else if (root is RadioButton rb)
                {
                    rb.BackColor = C.Panel;
                    rb.ForeColor = rb.Enabled ? C.Fg : C.Muted;
                    rb.Font = C3DFonts.Normal;
                    rb.FlatStyle = FlatStyle.Flat;
                }
                else if (root is ComboBox combo)
                {
                    combo.BackColor = C.Entry;
                    combo.ForeColor = C.Fg;
                    combo.FlatStyle = FlatStyle.Flat;
                    combo.Font = C3DFonts.Normal;
                }
                else if (root is NumericUpDown num)
                {
                    num.BackColor = C.Entry;
                    num.ForeColor = C.Fg;
                    num.Font = C3DFonts.Normal;
                    num.BorderStyle = BorderStyle.FixedSingle;
                }
                else if (root is TextBox tb)
                {
                    tb.BackColor = C.Entry;
                    tb.ForeColor = C.Fg;
                    tb.BorderStyle = BorderStyle.FixedSingle;
                    tb.Font = C3DFonts.Normal;
                }
                else if (root is DataGridView grid)
                {
                    StyleGrid(grid, C);
                }
                else if (root is GroupBox gb)
                {
                    gb.BackColor = C.Panel;
                    gb.ForeColor = C.Accent;
                    gb.Font = C3DFonts.ButtonBold;
                }
                else if (root is Label lbl)
                {
                    StyleLabel(lbl, roleName, C);
                }
                else if (root is SplitContainer sc)
                {
                    sc.BackColor = C.Border;
                    sc.Panel1.BackColor = C.Panel;
                    sc.Panel2.BackColor = C.Panel;
                }
                else if (root is Panel pnl)
                {
                    pnl.BackColor = roleName == RoleHeader ? C.HeaderBg : C.Panel;
                }
                else if (root is Form frm)
                {
                    frm.BackColor = C.Bg;
                    frm.Font = C3DFonts.Normal;
                }
                else if (root is TableLayoutPanel || root is FlowLayoutPanel)
                {
                    root.BackColor = C.Panel;
                }
            }
            catch
            {
                // Styling is best-effort; never break the CAD command because a
                // platform control rejects one themed property.
            }

            foreach (Control child in root.Controls)
                Apply(child, C);
        }

        private static void StyleLabel(Label lbl, string roleName, C3DPalette C)
        {
            switch (roleName)
            {
                case RoleHeaderTitle:
                    lbl.BackColor = C.HeaderBg;
                    lbl.ForeColor = C.TextW;
                    lbl.Font = C3DFonts.Title;
                    break;
                case RoleHeaderPath:
                    lbl.BackColor = C.HeaderBg;
                    lbl.ForeColor = C.Muted;
                    lbl.Font = C3DFonts.Small;
                    break;
                case RoleMuted:
                case "hint":
                    lbl.BackColor = C.Panel;
                    lbl.ForeColor = C.Muted;
                    lbl.Font = C3DFonts.Small;
                    break;
                default:
                    lbl.BackColor = C.Panel;
                    lbl.ForeColor = C.Fg;
                    lbl.Font = C3DFonts.Normal;
                    break;
            }
        }

        public static Button StyleButton(Button button, string roleName, C3DPalette C)
        {
            roleName = string.IsNullOrEmpty(roleName) ? RoleNeutral : roleName.ToLowerInvariant();

            button.FlatStyle = FlatStyle.Flat;
            button.FlatAppearance.BorderSize = 0;
            button.Font = C3DFonts.Button;
            button.Cursor = Cursors.Hand;
            button.Padding = new Padding(6, 2, 6, 2);
            button.UseVisualStyleBackColor = false;

            switch (roleName)
            {
                case RolePrimary:
                case "ok":
                case "success":
                    button.BackColor = C.Green;
                    button.ForeColor = C.TextW;
                    button.Font = C3DFonts.ButtonBold;
                    button.FlatAppearance.MouseOverBackColor = Lighten(C.Green);
                    button.FlatAppearance.MouseDownBackColor = Lighten(C.Green, 10);
                    break;
                case RoleRefresh:
                case "info":
                case "blue":
                    button.BackColor = C.Blue;
                    button.ForeColor = C.TextW;
                    button.FlatAppearance.MouseOverBackColor = Lighten(C.Blue);
                    button.FlatAppearance.MouseDownBackColor = Lighten(C.Blue, 10);
                    break;
                case RoleDanger:
                case "delete":
                case "revert":
                    button.BackColor = C.Panel;
                    button.ForeColor = C.Red;
                    button.FlatAppearance.MouseOverBackColor = C.Border;
                    button.FlatAppearance.MouseDownBackColor = Lighten(C.Border, 10);
                    break;
                case RoleWarn:
                case "warning":
                    button.BackColor = C.Orange;
                    button.ForeColor = C.TextW;
                    button.FlatAppearance.MouseOverBackColor = Lighten(C.Orange);
                    button.FlatAppearance.MouseDownBackColor = Lighten(C.Orange, 10);
                    break;
                default:
                    button.BackColor = C.Panel;
                    button.ForeColor = C.Fg;
                    button.FlatAppearance.MouseOverBackColor = C.Border;
                    button.FlatAppearance.MouseDownBackColor = Lighten(C.Border, 10);
                    break;
            }
            return button;
        }

        private static void StyleGrid(DataGridView grid, C3DPalette C)
        {
            grid.BackgroundColor = C.CodeBg;
            grid.ForeColor = C.Fg;
            grid.GridColor = C.Border;
            grid.BorderStyle = BorderStyle.FixedSingle;
            grid.EnableHeadersVisualStyles = false;
            grid.ColumnHeadersDefaultCellStyle.BackColor = C.Bg2;
            grid.ColumnHeadersDefaultCellStyle.ForeColor = C.Fg;
            grid.ColumnHeadersDefaultCellStyle.Font = C3DFonts.ButtonBold;
            grid.DefaultCellStyle.BackColor = C.CodeBg;
            grid.DefaultCellStyle.ForeColor = C.CodeFg;
            grid.DefaultCellStyle.SelectionBackColor = C.SelBg;
            grid.DefaultCellStyle.SelectionForeColor = C.SelFg;
            grid.DefaultCellStyle.Font = C3DFonts.Normal;
            grid.RowHeadersDefaultCellStyle.BackColor = C.Bg2;
            grid.RowHeadersDefaultCellStyle.ForeColor = C.Fg;
            grid.AlternatingRowsDefaultCellStyle.BackColor = C.Panel;
            grid.RowHeadersVisible = grid.RowHeadersVisible;
        }
    }
}


// ===== FILE: UI\ModelSpacePreviewController.cs =====
using System;
using System.Collections.Generic;
using System.Drawing;
using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.GraphicsInterface;
using Autodesk.AutoCAD.Geometry;
using AcadColor = Autodesk.AutoCAD.Colors.Color;

namespace MultiOffsetBothSidesWithLayerExtra.UI
{
    /// <summary>
    /// Live model-space preview made from real, database-detached AutoCAD entities
    /// registered with TransientManager.  It mirrors the WinForms preview while the
    /// user edits pipe counts, offsets, start mode, extras, and profile options,
    /// but writes nothing to the drawing until Apply is pressed.
    /// </summary>
    public sealed class ModelSpacePreviewController : IDisposable
    {
        private readonly IntegerCollection _viewports = new IntegerCollection();
        private readonly List<Entity> _transients = new List<Entity>();
        private bool _disposed;

        public int Count => _transients.Count;
        public bool Enabled { get; set; } = true;

        public bool Add(Entity entity, Color color)
        {
            if (_disposed || !Enabled || entity == null) return false;

            try
            {
                entity.Color = AcadColor.FromRgb(color.R, color.G, color.B);
                entity.LineWeight = LineWeight.LineWeight030;
                TransientManager.CurrentTransientManager.AddTransient(
                    entity, TransientDrawingMode.DirectShortTerm, 128, _viewports);
                _transients.Add(entity);
                return true;
            }
            catch
            {
                return false;
            }
        }

        public void Clear(Document doc = null)
        {
            if (_transients.Count == 0) return;

            var tm = TransientManager.CurrentTransientManager;
            foreach (var entity in _transients)
            {
                try { tm.EraseTransient(entity, _viewports); } catch { /* already gone */ }
                try { entity.Dispose(); } catch { /* best-effort cleanup */ }
            }
            _transients.Clear();

            try { doc?.Editor.UpdateScreen(); } catch { /* AutoCAD may be closing */ }
        }

        public void Dispose()
        {
            if (_disposed) return;
            _disposed = true;
            Clear();
        }
    }
}


// ===== FILE: UI\PreviewControl.cs =====
using System;
using System.Collections.Generic;
using System.Drawing;
using System.Drawing.Drawing2D;
using System.Linq;
using System.Windows.Forms;
using Autodesk.AutoCAD.Geometry;

namespace MultiOffsetBothSidesWithLayerExtra.UI
{
    /// <summary>
    /// Model-space-style 2D preview panel. Ported from ParallelPipesNet's
    /// zoomable preview control, but adapted to the selected/offset curve lists
    /// used by this project.
    ///
    /// Mouse wheel zooms the fitted preview (0.2x..12x); right-click resets to
    /// fit-to-panel. The preview owns the wheel message so parent controls do not
    /// accidentally scroll/switch focus while the user is zooming geometry.
    /// </summary>
    public class PreviewControl : Panel
    {
        private sealed class PreviewLayer
        {
            public List<Point2d> Points;
            public Color Color;
            public float Width;
            public DashStyle DashStyle;
        }

        private readonly List<PreviewLayer> _layers = new List<PreviewLayer>();
        private float _zoom = 1f;
        private const float MinZoom = 0.2f;
        private const float MaxZoom = 12f;

        public event EventHandler ZoomChanged;

        public float ZoomFactor
        {
            get { return _zoom; }
            set { SetZoom(value); }
        }

        public PreviewControl()
        {
            DoubleBuffered = true;
            BackColor = Color.Black;
            BorderStyle = BorderStyle.FixedSingle;
            TabStop = true;
            SetStyle(ControlStyles.ResizeRedraw | ControlStyles.Selectable, true);

            MouseEnter += (s, e) => Focus();
            MouseDown += (s, e) =>
            {
                Focus();
                if (e.Button == MouseButtons.Right)
                {
                    SetZoom(1f);
                }
            };
        }

        public void ClearGeometry()
        {
            _layers.Clear();
            Refresh();
        }

        /// <summary>Add one polyline (as world points) to be drawn in the given color.</summary>
        public void AddPolyline(List<Point2d> worldPoints, Color color)
        {
            AddPolyline(worldPoints, color, 1.5f, DashStyle.Solid);
        }

        public void AddPolyline(List<Point2d> worldPoints, Color color, float width, DashStyle dashStyle)
        {
            if (worldPoints == null || worldPoints.Count < 2) return;
            _layers.Add(new PreviewLayer
            {
                Points = worldPoints,
                Color = color,
                Width = width,
                DashStyle = dashStyle
            });
            Refresh();
        }

        public void SetPolylines(IEnumerable<List<Point2d>> polylines, Color color)
        {
            foreach (var pts in polylines)
                AddPolyline(pts, color);
        }

        protected override void OnMouseWheel(MouseEventArgs e)
        {
            float factor = e.Delta > 0 ? 1.15f : 1f / 1.15f;
            SetZoom(_zoom * factor);
            // Deliberately do not call base.OnMouseWheel(e), matching the
            // ParallelPipesNet control: this keeps zooming local to the preview.
        }

        private void SetZoom(float value)
        {
            float next = Math.Max(MinZoom, Math.Min(MaxZoom, value));
            if (Math.Abs(next - _zoom) < 0.001f) return;
            _zoom = next;
            Refresh();
            ZoomChanged?.Invoke(this, EventArgs.Empty);
        }

        protected override void OnPaint(PaintEventArgs e)
        {
            base.OnPaint(e);
            var g = e.Graphics;
            g.SmoothingMode = SmoothingMode.AntiAlias;

            if (_layers.Count == 0)
            {
                using (var f = new Font("Segoe UI", 9f))
                using (var b = new SolidBrush(Color.FromArgb(150, 200, 200, 200)))
                {
                    g.DrawString("No geometry to preview.\nPick objects to see selected curves and computed offsets here.",
                        f, b, new PointF(8, 8));
                }
                return;
            }

            DrawGeometry(g, ClientSize.Width, ClientSize.Height);
        }

        private void DrawGeometry(Graphics g, int w, int h)
        {
            if (w < 20 || h < 20) return;

            var all = _layers.SelectMany(layer => layer.Points).ToList();
            if (all.Count == 0) return;

            double minX = all.Min(p => p.X), maxX = all.Max(p => p.X);
            double minY = all.Min(p => p.Y), maxY = all.Max(p => p.Y);
            double worldW = Math.Max(maxX - minX, 1e-6);
            double worldH = Math.Max(maxY - minY, 1e-6);

            const int margin = 12;
            double availW = Math.Max(1.0, w - 2.0 * margin);
            double availH = Math.Max(1.0, h - 2.0 * margin);
            double scale = Math.Min(availW / worldW, availH / worldH) * _zoom;

            double drawW = worldW * scale;
            double drawH = worldH * scale;
            double padX = margin + (availW - drawW) / 2.0;
            double padY = margin + (availH - drawH) / 2.0;

            PointF ToPanel(Point2d p)
            {
                return new PointF(
                    (float)(padX + (p.X - minX) * scale),
                    (float)(h - padY - (p.Y - minY) * scale));
            }

            using (var refPen = new Pen(Color.FromArgb(55, 90, 90, 90), 1f) { DashStyle = DashStyle.Dash })
            {
                float midY = h / 2f;
                float midX = w / 2f;
                g.DrawLine(refPen, 6, midY, w - 6, midY);
                g.DrawLine(refPen, midX, 6, midX, h - 6);
            }

            foreach (var layer in _layers)
            {
                if (layer.Points == null || layer.Points.Count < 2) continue;
                var pts = layer.Points.Select(ToPanel).ToArray();
                using (var pen = new Pen(layer.Color, layer.Width) { DashStyle = layer.DashStyle })
                    g.DrawLines(pen, pts);
            }

            using (var hintBrush = new SolidBrush(Color.FromArgb(135, 210, 210, 210)))
            using (var hintFont = new Font("Segoe UI", 7f))
            {
                var text = Math.Abs(_zoom - 1f) > 0.01f
                    ? $"scroll: zoom ({_zoom:0.0}x)  |  right-click: reset"
                    : "scroll to zoom  |  right-click: reset";
                var size = g.MeasureString(text, hintFont);
                g.DrawString(text, hintFont, hintBrush, w - size.Width - 6, h - size.Height - 4);
            }
        }
    }
}


// ===== FILE: Models\GroupOptions.cs =====
using System;
using System.Collections.Generic;

namespace MultiOffsetBothSidesWithLayerExtra.Models
{
    /// <summary>
    /// Tri-state mode for a per-group checkbox default.
    ///   Checked   -> box defaults ON,  still user-editable in the main form
    ///   Unchecked -> box defaults OFF, still user-editable in the main form
    ///   Disabled  -> box is greyed out / locked OFF, not user-editable
    /// </summary>
    public enum GroupCheckMode
    {
        Checked = 0,
        Unchecked = 1,
        Disabled = 2
    }

    /// <summary>
    /// The canonical profile groups. Mirrors the LISP OL-ProfileGroupKey
    /// classification (Schutzrohr_110 / Schutzrohr_160 / KK / DN).
    /// </summary>
    public static class ProfileGroups
    {
        public const string Schutzrohr110 = "Schutzrohr_110";
        public const string Schutzrohr160 = "Schutzrohr_160";
        public const string KK = "KK";
        public const string DN = "DN";

        public static readonly string[] All =
        {
            Schutzrohr110, Schutzrohr160, KK, DN
        };

        /// <summary>
        /// Classify a profile display name into one of the 4 groups.
        /// Same wildcard logic as the LISP OL-ProfileGroupKey.
        /// </summary>
        public static string Classify(string profileName)
        {
            if (string.IsNullOrEmpty(profileName))
                return KK;

            string u = profileName.ToUpperInvariant();

            if (u.Contains("SCHUTZROHR.DN 110"))
                return Schutzrohr110;
            if (u.Contains("SCHUTZROHR.DN 160"))
                return Schutzrohr160;
            if (u.StartsWith("DN", StringComparison.OrdinalIgnoreCase))
                return DN;

            return KK;
        }
    }

    /// <summary>
    /// Per-group checkbox default configuration. One row per group,
    /// editable from the Manage Profiles form and persisted by ProfileStore.
    /// </summary>
    [Serializable]
    public class GroupOptions
    {
        public string GroupKey { get; set; }
        public GroupCheckMode Close { get; set; }
        public GroupCheckMode Center { get; set; }
        public GroupCheckMode OrigHilf { get; set; }
        public GroupCheckMode DelOrig { get; set; }

        public GroupOptions() { }

        public GroupOptions(string groupKey, GroupCheckMode close, GroupCheckMode center,
                             GroupCheckMode origHilf, GroupCheckMode delOrig)
        {
            GroupKey = groupKey;
            Close = close;
            Center = center;
            OrigHilf = origHilf;
            DelOrig = delOrig;
        }

        /// <summary>
        /// Seed defaults matching the original LISP hardcoded behaviour:
        /// Schutzrohr locks Close off (Center stays editable/checked);
        /// DN locks both Close and Center off; KK leaves everything editable.
        /// orig_hilf/delorig previously had NO per-group control at all in
        /// LISP — default to Checked/editable everywhere except where the
        /// LISP logic silently ignored them (Schutzrohr original never
        /// moves to _HILFSLINIEN, so OrigHilf is Disabled there).
        /// </summary>
        public static List<GroupOptions> Defaults()
        {
            return new List<GroupOptions>
            {
                new GroupOptions(ProfileGroups.Schutzrohr110,
                    GroupCheckMode.Disabled, GroupCheckMode.Checked,
                    GroupCheckMode.Disabled, GroupCheckMode.Checked),

                new GroupOptions(ProfileGroups.Schutzrohr160,
                    GroupCheckMode.Disabled, GroupCheckMode.Checked,
                    GroupCheckMode.Disabled, GroupCheckMode.Checked),

                new GroupOptions(ProfileGroups.KK,
                    GroupCheckMode.Checked, GroupCheckMode.Checked,
                    GroupCheckMode.Checked, GroupCheckMode.Checked),

                new GroupOptions(ProfileGroups.DN,
                    GroupCheckMode.Disabled, GroupCheckMode.Disabled,
                    GroupCheckMode.Checked, GroupCheckMode.Checked),
            };
        }
    }
}


// ===== FILE: Models\ProfileEntry.cs =====
using System;

namespace MultiOffsetBothSidesWithLayerExtra.Models
{
    /// <summary>
    /// One predefined pipe/duct/casing profile. Equivalent to one row of
    /// the LISP *ol-profiles* list, plus the matching *ol-layer-defs* entry
    /// folded in (Color/Linetype/Lineweight) so the whole thing round-trips
    /// as a single editable row in the Manage Profiles grid.
    /// </summary>
    [Serializable]
    public class ProfileEntry
    {
        public string Name { get; set; }
        public double OffsetLeft { get; set; }
        public double OffsetRight { get; set; }
        public string LayerName { get; set; }
        public int PipeCount { get; set; } = 1;

        public int ColorIndex { get; set; } = 11;
        public string Linetype { get; set; } = "Continuous";
        public int Lineweight { get; set; } = -3;

        public ProfileEntry() { }

        public ProfileEntry(string name, double offL, double offR, string layer,
                             int pipeCount, int colorIndex, string linetype, int lineweight)
        {
            Name = name;
            OffsetLeft = offL;
            OffsetRight = offR;
            LayerName = layer;
            PipeCount = pipeCount;
            ColorIndex = colorIndex;
            Linetype = linetype;
            Lineweight = lineweight;
        }

        /// <summary>Which of the 4 canonical groups this profile belongs to.</summary>
        public string GroupKey => ProfileGroups.Classify(Name);

        public bool IsSchutzrohr =>
            GroupKey == ProfileGroups.Schutzrohr110 || GroupKey == ProfileGroups.Schutzrohr160;

        /// <summary>Pipe outer diameter in metres, or null if not Schutzrohr.</summary>
        public double? SchutzrohrDiameter
        {
            get
            {
                if (GroupKey == ProfileGroups.Schutzrohr110) return 0.11;
                if (GroupKey == ProfileGroups.Schutzrohr160) return 0.16;
                return null;
            }
        }

        public override string ToString() => Name;
    }
}


// ===== FILE: Models\RunSettings.cs =====
using System;

namespace MultiOffsetBothSidesWithLayerExtra.Models
{
    /// <summary>"Starting point represents" — same 4 modes as the LISP *ol-startmode*.</summary>
    public enum StartMode
    {
        Centerline = 0,
        OffsetUp = 1,     // picked/selected reference is the LEFT outer edge
        OffsetDown = 2,   // picked/selected reference is the RIGHT outer edge
        SchutzrohrExterior = 3
    }

    public enum SelectMode
    {
        TwoPoints = 2,
        SelectCenterlines = 1,
        ChangeExisting = 3
    }

    /// <summary>
    /// All the settings that used to live in *ol-...* globals, gathered into
    /// one object that MainForm edits and OffsetEngine consumes. This is the
    /// C# equivalent of the dialog's tile state at the moment "Run" is
    /// pressed — except here it's a live, reusable object because the form
    /// is modeless, not a one-shot modal.
    /// </summary>
    public class RunSettings
    {
        public SelectMode SelectMode { get; set; } = SelectMode.SelectCenterlines;
        public StartMode StartMode { get; set; } = StartMode.Centerline;

        public ProfileEntry Profile { get; set; }
        public int PipeCount { get; set; } = 1;
        public double OffsetLeft { get; set; } = 0.055;
        public double OffsetRight { get; set; } = 0.055;
        public int ExtraLeft { get; set; } = 0;
        public int ExtraRight { get; set; } = 0;
        public bool EqualExtraCounts { get; set; } = true;

        public bool DeleteOriginal { get; set; }
        public bool UseTargetLayer { get; set; } = true;
        public string TargetLayer { get; set; }

        public bool PpoClose { get; set; }
        public bool PpoCenter { get; set; }
        public bool OrigOnHilf { get; set; }

        public const string HilfLayer = "_HILFSLINIEN";
    }
}


// ===== FILE: Properties\AssemblyInfo.cs =====
using System.Reflection;
using System.Runtime.InteropServices;

[assembly: AssemblyTitle("MultiOffsetBothSidesWithLayerExtra")]
[assembly: AssemblyDescription("Civil3D pipe/duct multi-offset tool — C# port of MultiOffsetBothSidesWithLayerExtra.lsp")]
[assembly: AssemblyConfiguration("")]
[assembly: AssemblyCompany("DB E.C.O. Group")]
[assembly: AssemblyProduct("MultiOffsetBothSidesWithLayerExtra")]
[assembly: AssemblyCopyright("")]
[assembly: AssemblyTrademark("")]
[assembly: AssemblyCulture("")]

[assembly: ComVisible(false)]
[assembly: Guid("9b2b6a7e-6b0a-4b8a-9a5b-6b9a1a4a6e2f")]

// Bump AssemblyVersion for real releases; VersionInfo.BuildNumber (in
// Services/VersionInfo.cs) is what's actually shown in the load banner
// and preview title, since it's independent of .NET's strict version format.
[assembly: AssemblyVersion("1.0.0.0")]
[assembly: AssemblyFileVersion("1.0.0.0")]
