DeleteBlockCrossings

Short description

🚀 DeleteBlockCrossings is an AutoCAD and Civil 3D 2024 .NET plugin for detecting and trimming curves that cross selected block references. It replaces the older ABBS workflow with a modeless C# interface, crossing diagnostics, preview feedback, apply control, undo support, and exportable logs for faster DWG cleanup and CAD production quality control.

Image 000 30

Command:

🧰 Load the plugin with NETLOAD by selecting the compiled DeleteBlockCrossings_yyyyMMdd_HHmmss.dll or the active build output DLL.
🚀 Main commands: DELETEBLOCKCROSSINGS, DBC, and ABBS compatibility alias.
📌 The command can use an existing pickfirst block selection, or it prompts the user to select AutoCAD block references using an INSERT selection filter.
🧩 Target platform: AutoCAD and Civil 3D 2024 x64, C# .NET Framework 4.8, ObjectARX managed API, WinForms modeless dialog, and timestamped DLL build output to avoid AutoCAD file locking.

Description:

📘 DeleteBlockCrossings is a productivity tool for AutoCAD and Civil 3D users who need to clean up lines, polylines, splines, arcs, and other curve geometry where it crosses selected block references. The user selects one or more blocks in the drawing, runs DELETEBLOCKCROSSINGS, DBC, or ABBS, and the plugin opens a modeless C# control panel.

🔍 The program reads the selected block references, resolves their effective block names, builds block frames from the block definition and block transform, then scans the same owner drawing space for candidate curves and nearby block references. It classifies the detected geometry as CROSSING, TOUCHING, CROSSING – CHECK, PROJECTED, EXTENTS TOUCH, or INTERFERING BLOCK.

📐 Rows marked as CROSSING are trim-capable when the plugin can calculate a safe two-point break pair. These rows can be checked and processed. Warning-only rows remain visible for CAD review, but their checkboxes are disabled because the code does not have a safe automatic trim operation for those cases.

🧠 The plugin uses AutoCAD database transactions, block frame geometry, intersection checks, sampled curve diagnostics, preview geometry, and split-curve processing to remove the part of each crossing curve that falls inside the selected block frame. This helps users automate repetitive block crossing cleanup while still showing diagnostics before modifying the drawing.

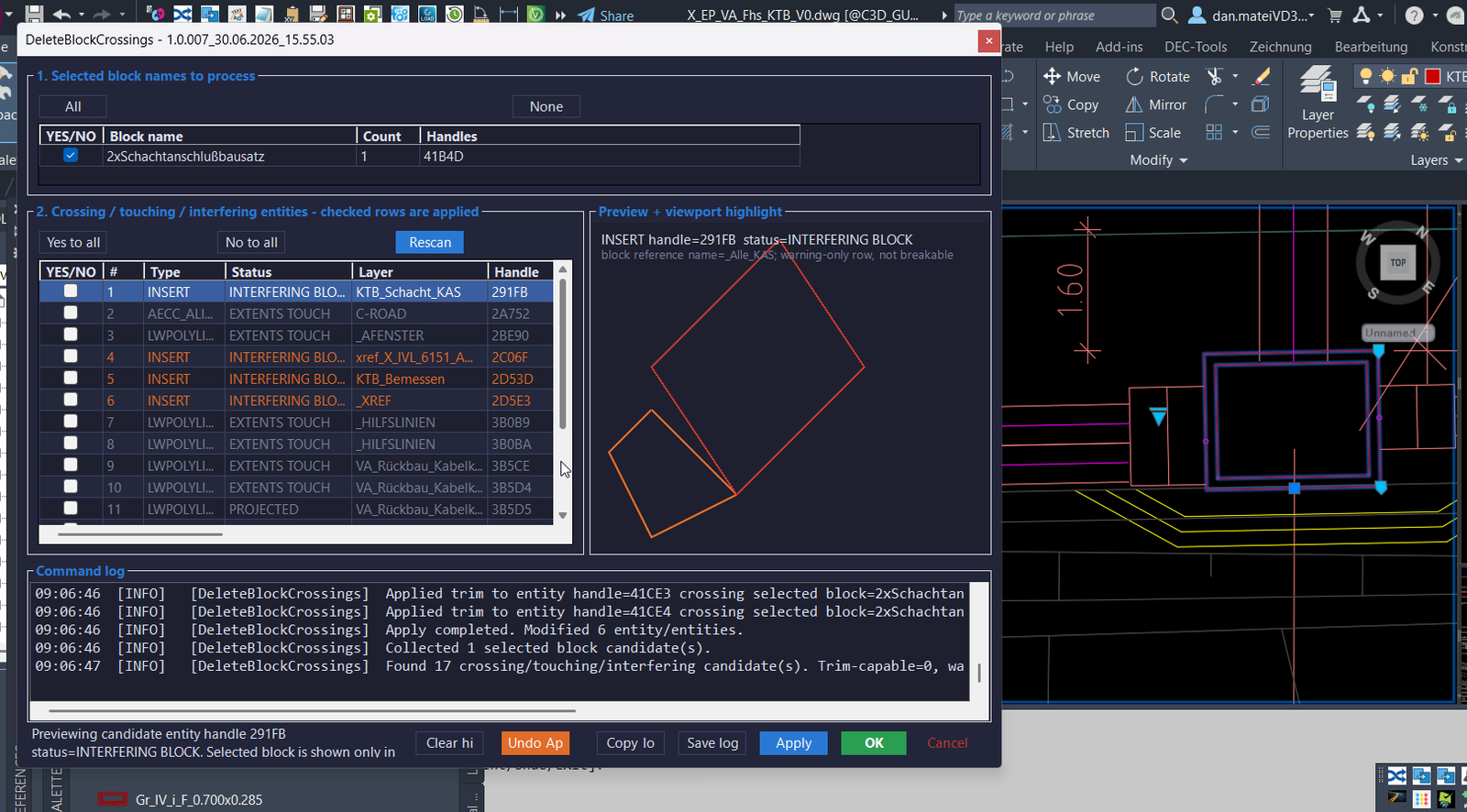

📝 The modeless interface includes selected block groups, crossing and touching rows, preview and viewport highlight, command log, apply, undo apply, copy log, save log, clear highlight, OK, and Cancel actions. Settings are stored under %APPDATA%\DeleteBlockCrossings\DeleteBlockCrossings.cfg, and diagnostic logs can be saved as text files.

Helper function: (if any)​

  • 🚀 Command registration – Plugin.cs registers DELETEBLOCKCROSSINGS, DBC, and ABBS through AutoCAD CommandMethod attributes.
  • 🧩 Command runner – DeleteBlockCrossingsCommandRunner.Run() collects the pickfirst selection or prompts for INSERT entities, clears the implied selection, loads persisted settings, and opens the modeless form.
  • 🔍 Block candidate collector – DbcScanner.CollectBlocks() reads selected BlockReference objects, resolves effective dynamic block names, stores handles, layers, owner spaces, and calculated block frames.
  • 📐 Crossing scanner – DbcScanner.ScanCrossings() scans entities in the block owner space, detects curves and nearby block references, and creates practical diagnostics for trimming and review.
  • 🧠 Intersection and sampling logic – GeometryUtil.Intersections(), PolylineSamplesTouchOrEnterPolygon(), and ApproximateSamplePolygonIntersections() improve detection when AutoCAD IntersectWith returns incomplete points for splines or polylines.
  • 📊 Status classification – candidate rows are classified as CROSSING, TOUCHING, CROSSING - CHECK, PROJECTED, EXTENTS TOUCH, or INTERFERING BLOCK to separate safe trim rows from review-only diagnostics.
  • ✂ī¸ Trim engine – DbcTrimmer.TrimChecked() processes checked trim-capable rows, splits curves at calculated break points with Curve.GetSplitCurves(), keeps outside pieces, and erases the original curve.
  • ↩ī¸ Undo apply system – TrimApplyRecord and UndoApply() store original entity clones and created object IDs so the last apply operation can be reverted.
  • 🎨 Preview and highlight – PreviewSampler.Sample() and the WinForms preview panel display the selected block frame and candidate geometry while AutoCAD viewport highlighting helps identify the active row.
  • 🔐 Settings and diagnostics – DbcSettings stores form bounds and enabled block names, while DbcLogger records operation history and exports diagnostic reports.
  • 🧰 Build lock workaround – the project uses timestamped output folders and timestamped DLL names so AutoCAD does not block rebuilding the original DLL after NETLOAD.

Functionalities:

  • 🚀 Launch crossing cleanup workflow – run DELETEBLOCKCROSSINGS, DBC, or ABBS to open a modeless AutoCAD Civil 3D cleanup tool.
  • 📌 Select block references – use pickfirst selection or a prompted INSERT filter to choose the block references that define the cleanup zones.
  • đŸ”ĸ Group selected blocks by name – display selected block names, counts, handles, and process toggles so repeated block references can be enabled or disabled together.
  • 🔍 Scan crossing and touching geometry – find curves, block references, extents overlaps, projected crossings, tangent contacts, and warning-only interference candidates.
  • 📐 Trim safe crossing curves – automatically trim checked CROSSING rows by removing the curve portion inside the selected block frame.
  • 🟧 Show warning-only diagnostics – keep TOUCHING, CROSSING - CHECK, PROJECTED, EXTENTS TOUCH, and INTERFERING BLOCK rows visible for manual QA review.
  • 🎨 Preview candidate geometry – display sampled entity geometry and block frame context in the preview panel for faster visual confirmation.
  • 🔍 Viewport highlight – highlight the active candidate in the AutoCAD drawing without leaving the modeless management workflow.
  • 🔄 Rescan after changing block filters – update selected block processing state and rebuild the crossing candidate table.
  • ✅ Check all and none controls – quickly enable or disable block groups and trim-capable crossing rows before applying changes.
  • ↩ī¸ Undo last apply – restore original entities and erase generated curve pieces from the last trim operation.
  • 📝 Copy and save logs – copy the live log or save a diagnostic report with version, selected block handles, candidate handles, statuses, and intersection points.
  • 🔒 Persist user choices – remember form size, form position, and enabled block-name settings in DeleteBlockCrossings.cfg.
  • 🧰 Developer-friendly build output – use timestamped local build folders to reduce DLL lock problems while testing with AutoCAD NETLOAD.

Result:

✅ The final result is a practical AutoCAD and Civil 3D cleanup plugin that helps users identify and remove unwanted curve segments passing through selected blocks. It reduces manual trimming, improves DWG quality control, documents crossing diagnostics, supports visual review, and keeps a reversible apply workflow for safer production drawing cleanup.
